Cross-line plumb laser LAX 500 G, 12 V system

Cross-line laser LAX 500 G, 12 V system, 7-piece set, with rechargeable battery and charger

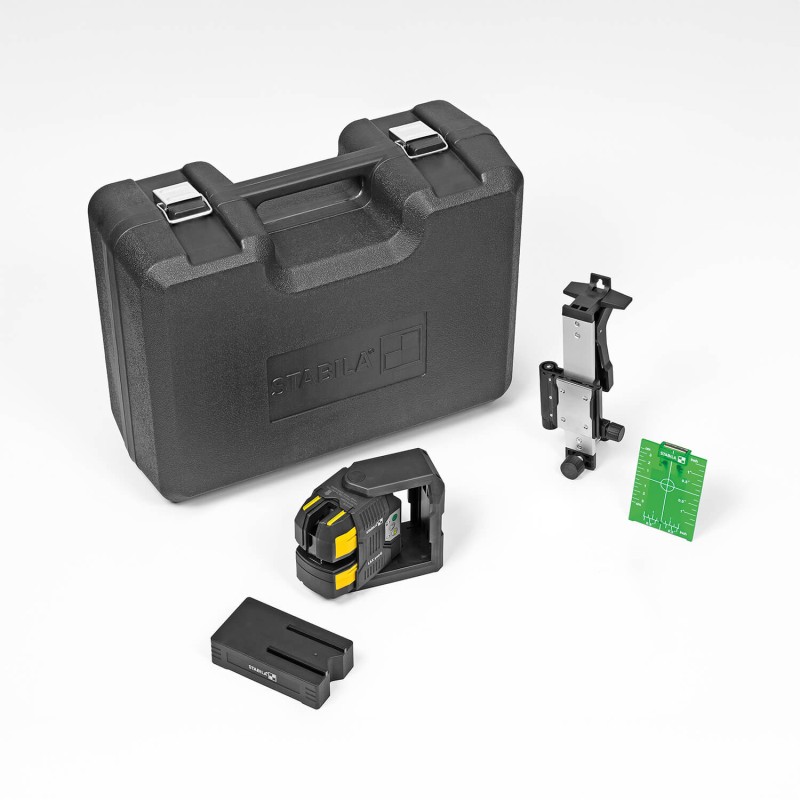

Cross-line laser LAX 500 G, 12 V system, 5-piece set, without rechargeable battery and charger

Cross-line laser LAX 500 G, 12 V system, 7-piece set, with rechargeable battery and charger

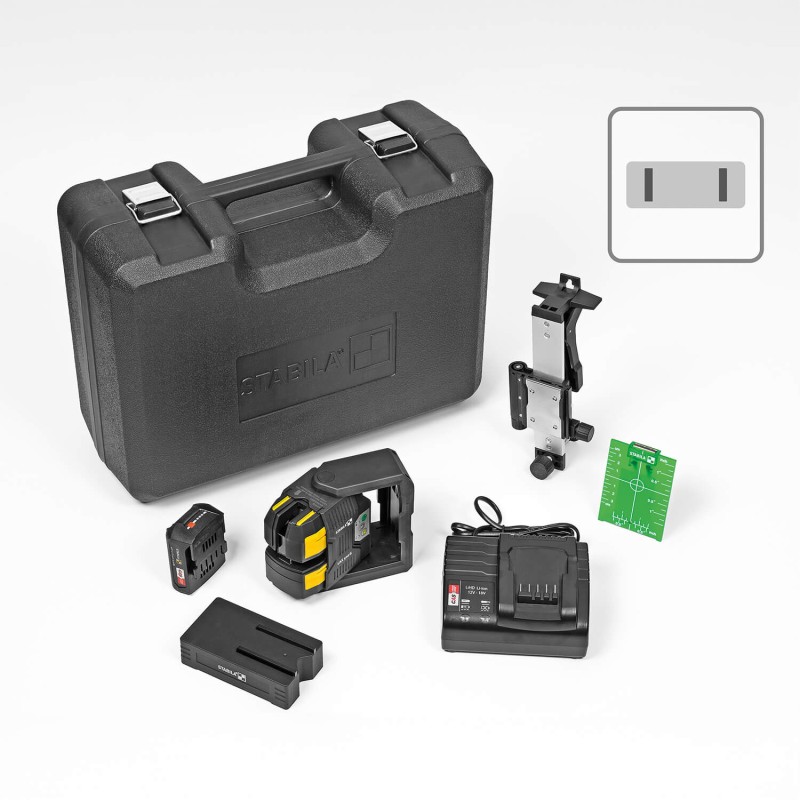

Included in delivery

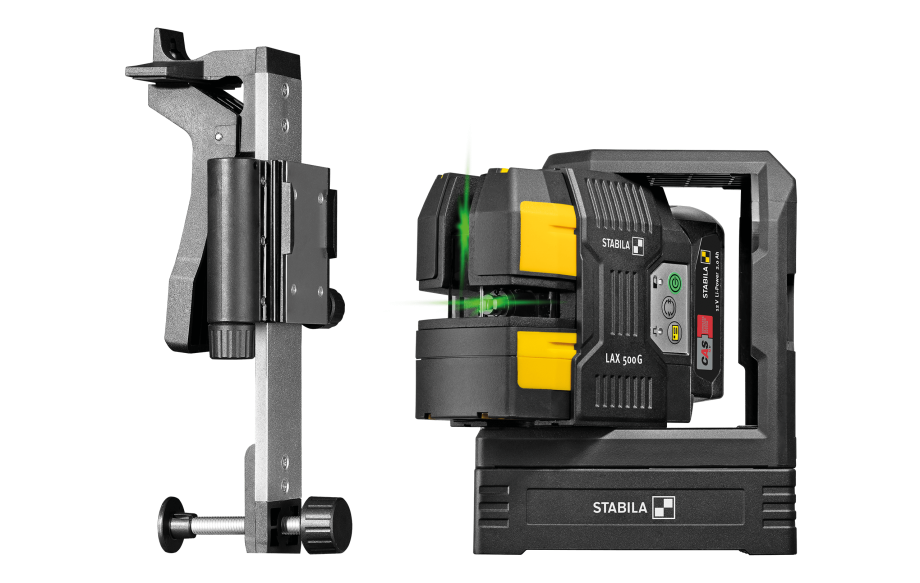

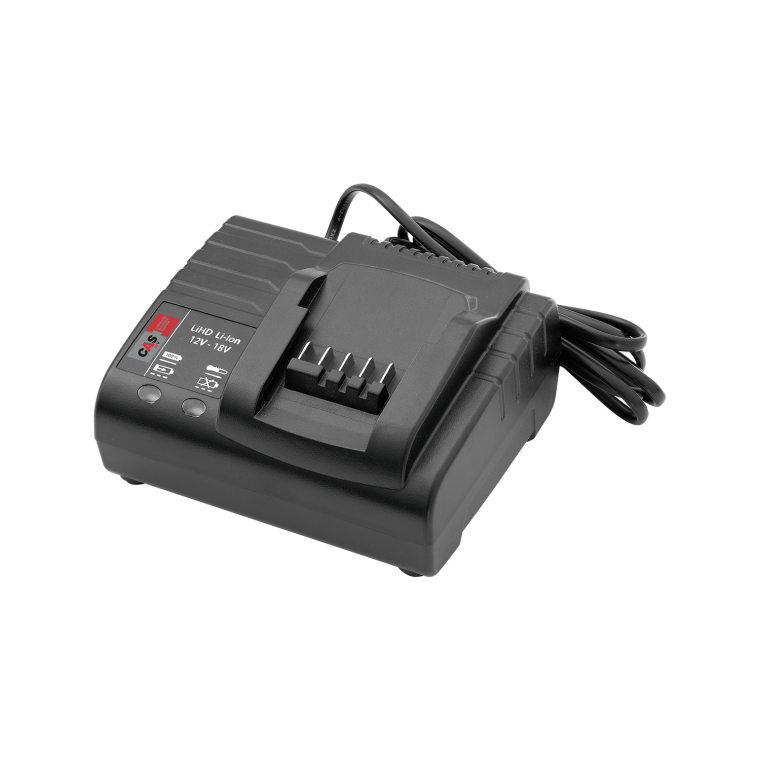

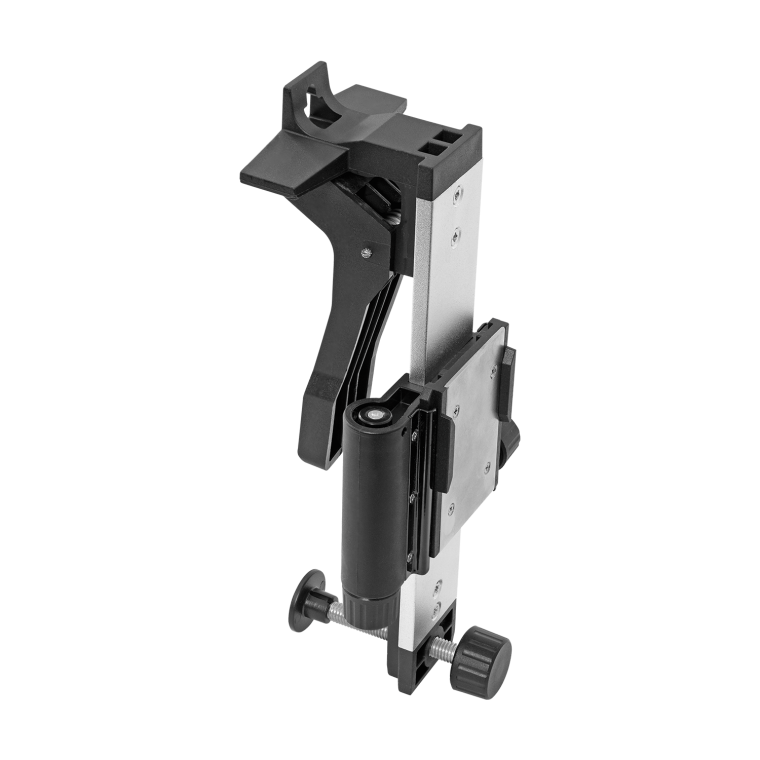

Multi-line laser LAX 500 G, 12 V LI-POWER 2.0 Ah CAS rechargeable battery, SC 30 CAS charger, SLB 500 laser base, SWB 10 wall bracket, target plate, carrying case

Cat. # 03520 UPC 089634035206

Buy Online

Operating instructions

Large action radius. Optimal visibility. Multi-function line laser with 12 V LI POWER.

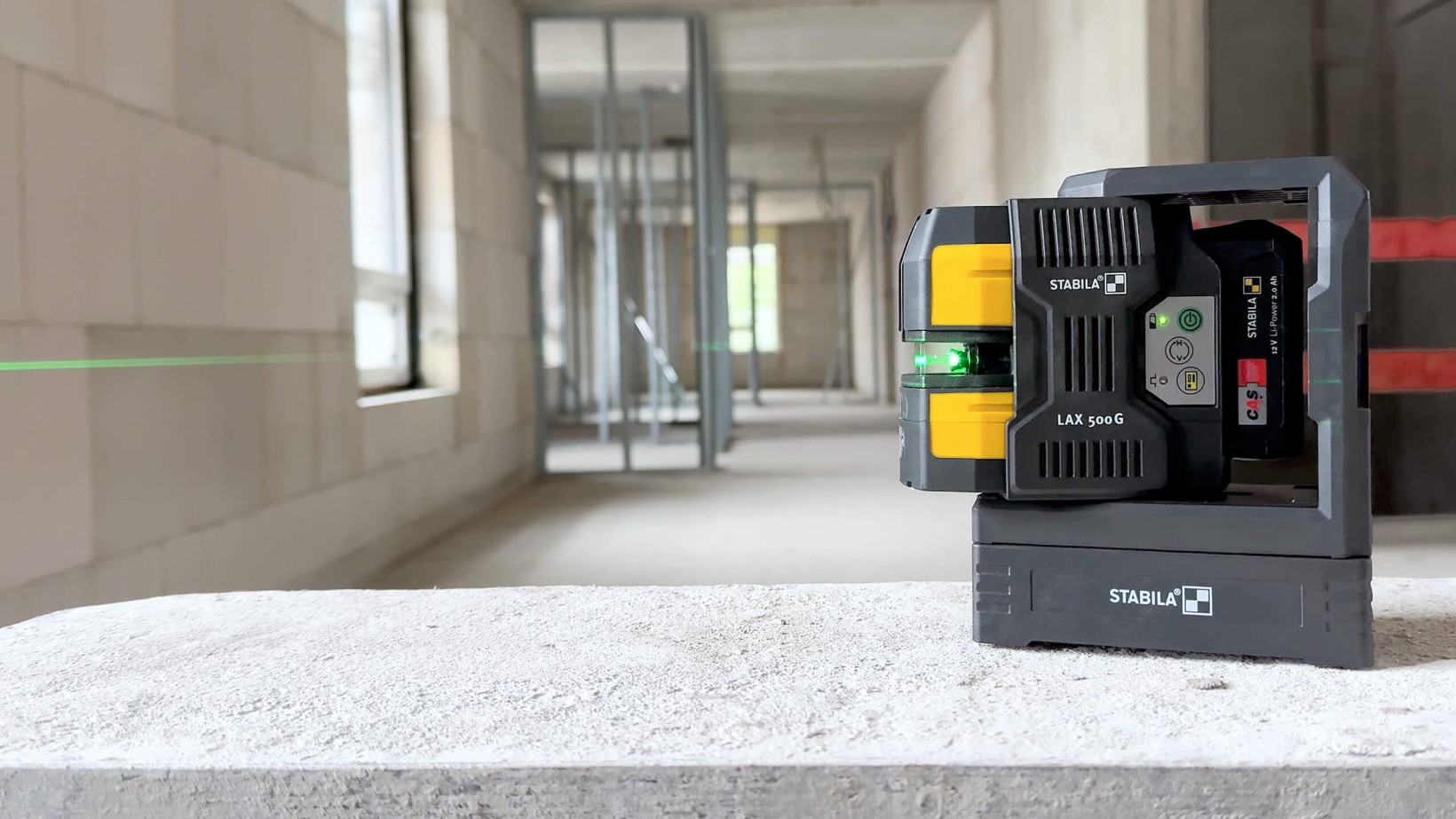

Discover the powerful LAX 500 G, the cross-line laser with plumb dots and modern rechargeable battery technology. Benefit from the innovative technology of this professional laser: GREENBEAM technology means razor-sharp lines that enable you to transfer heights or align axes at a distance of up to 130 ft/40 m. In manual mode, the laser can be positioned at any desired angle and thanks to the included accessories, is ideal for a range of applications. The laser optics are optimally protected by the proctective housing. STABILA – simply work efficiently!

Highlights

GREENBEAM technology for extremely long and optimally visible laser lines.

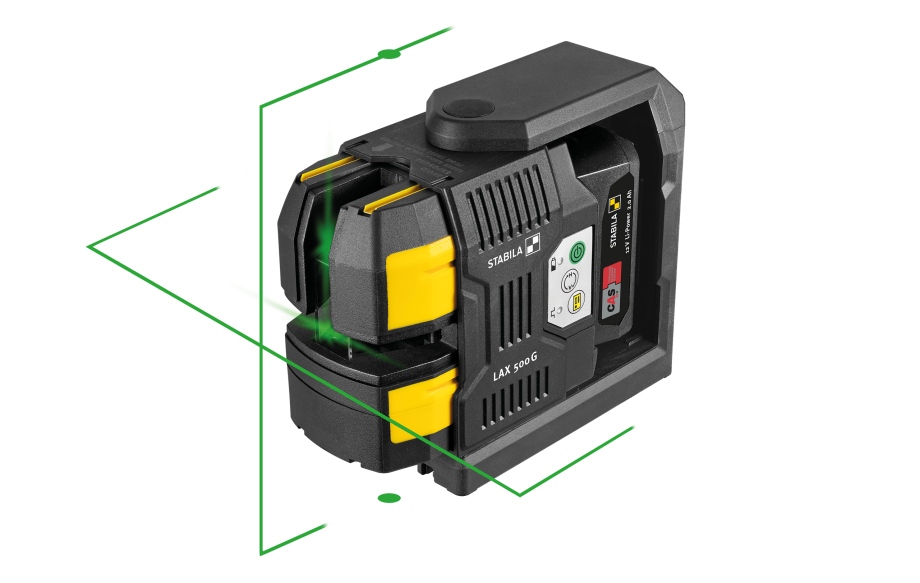

Versatile use thanks to cross-lines and plumb points.

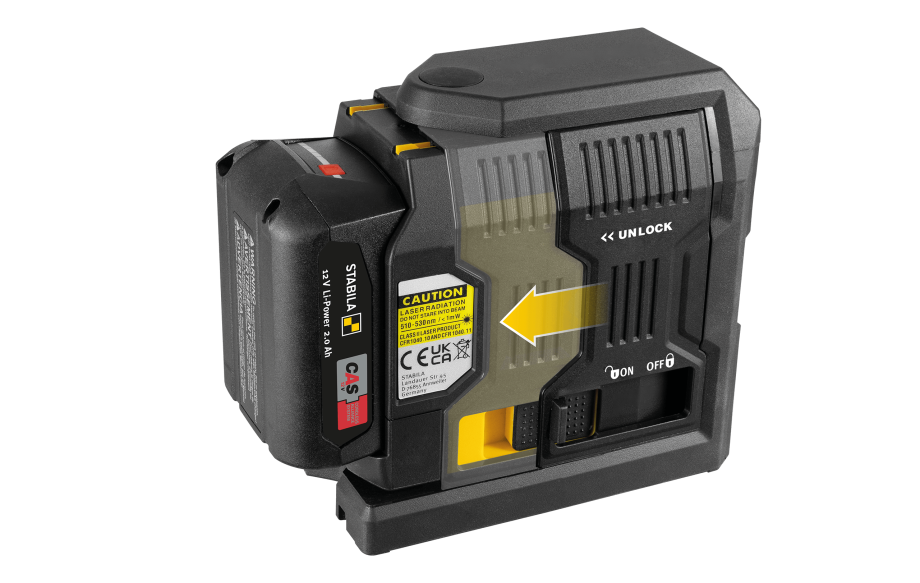

Powerful 12 V LI-POWER 2.0 Ah CAS rechargeable battery.
Effective optics protection thanks to the protective housing.
Can be positioned flexibly: 1/4″ thread, magnets, laser base and wall bracket.

Laser class

2

Output

< 1 mW

Laser wavelength

510 - 530 nm

Self-levelling range ±

5°

Levelling accuracy ±

1/8 in @ 30 ft

Laser beam accuracy (up) ±

1/8 in @ 30 ft

Laser beam accuracy (down) ±

1/8 in @ 30 ft

Measuring range of visible line

130 ft

Operating life

20 h

Protection rating

IP 54

Tripod connection

1/4"

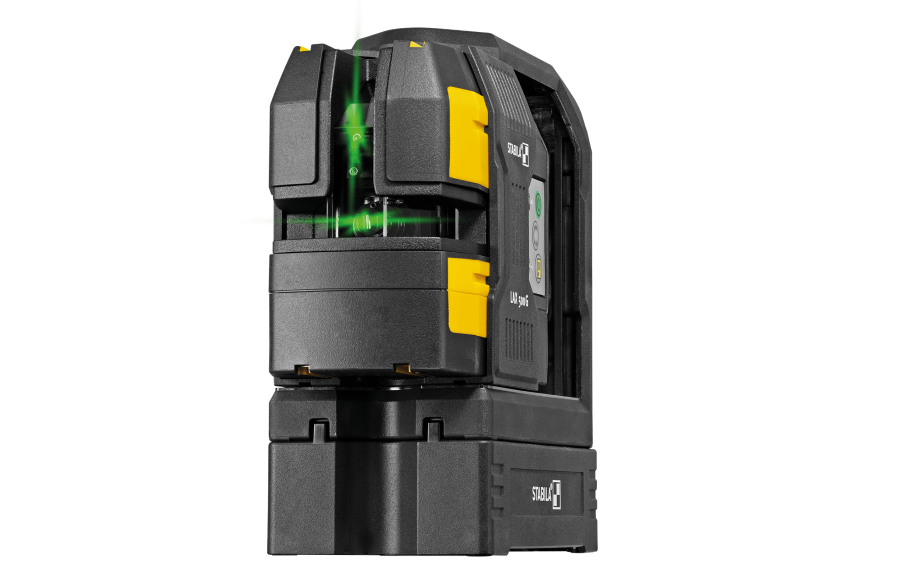

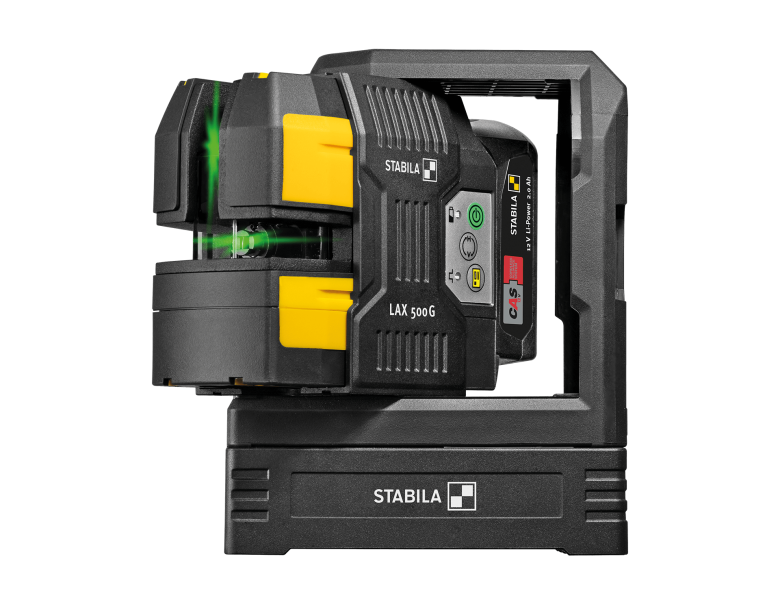

12 V CAS rechargeable battery-operated, self-leveling cross-line laser with plumb dots for working efficiently on the horizontal and vertical planes.

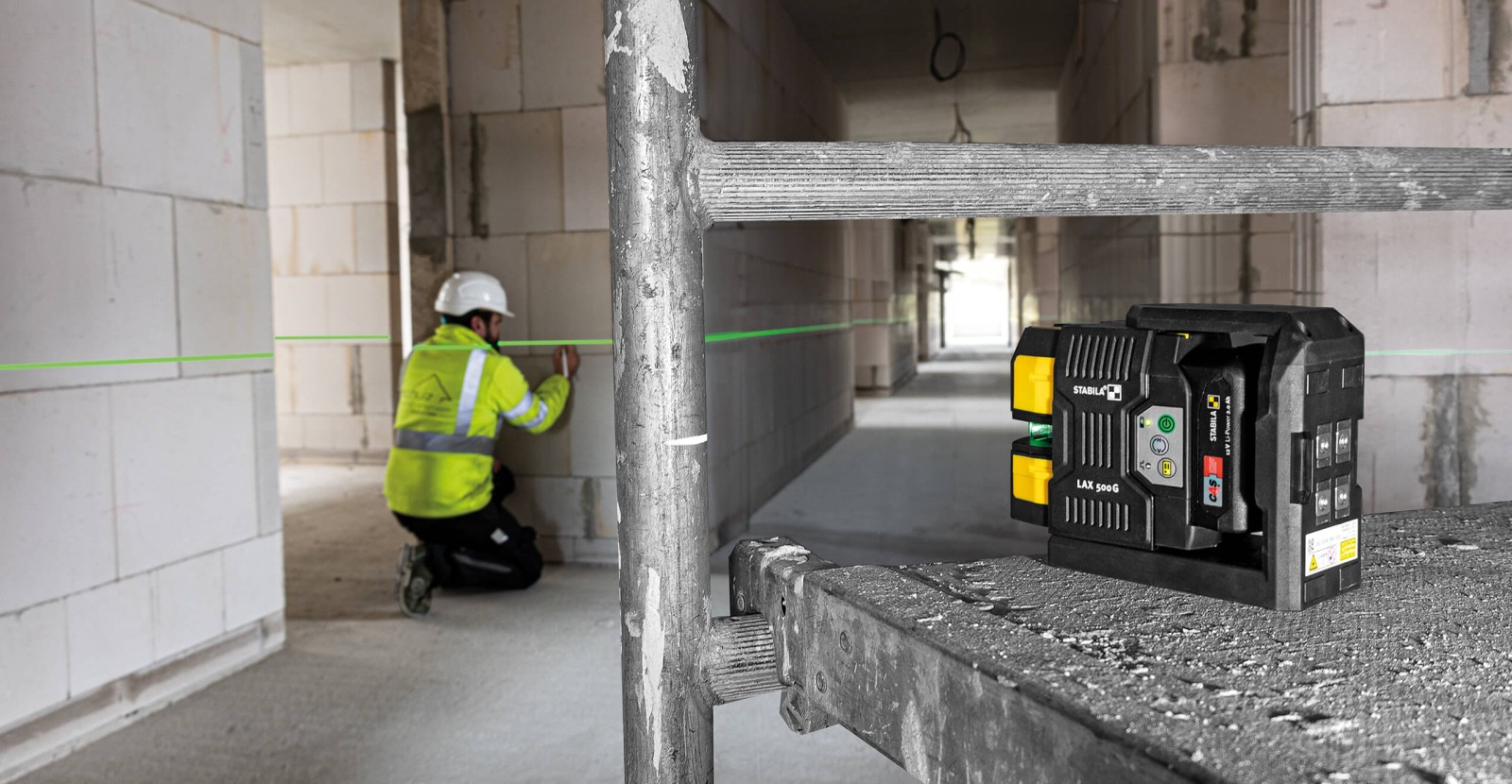

GREENBEAM technology: direct work on sharp and perfectly visible lines – up to 130 ft/40 m away.
High-performance diodes: Vertical line covers almost the entire room.

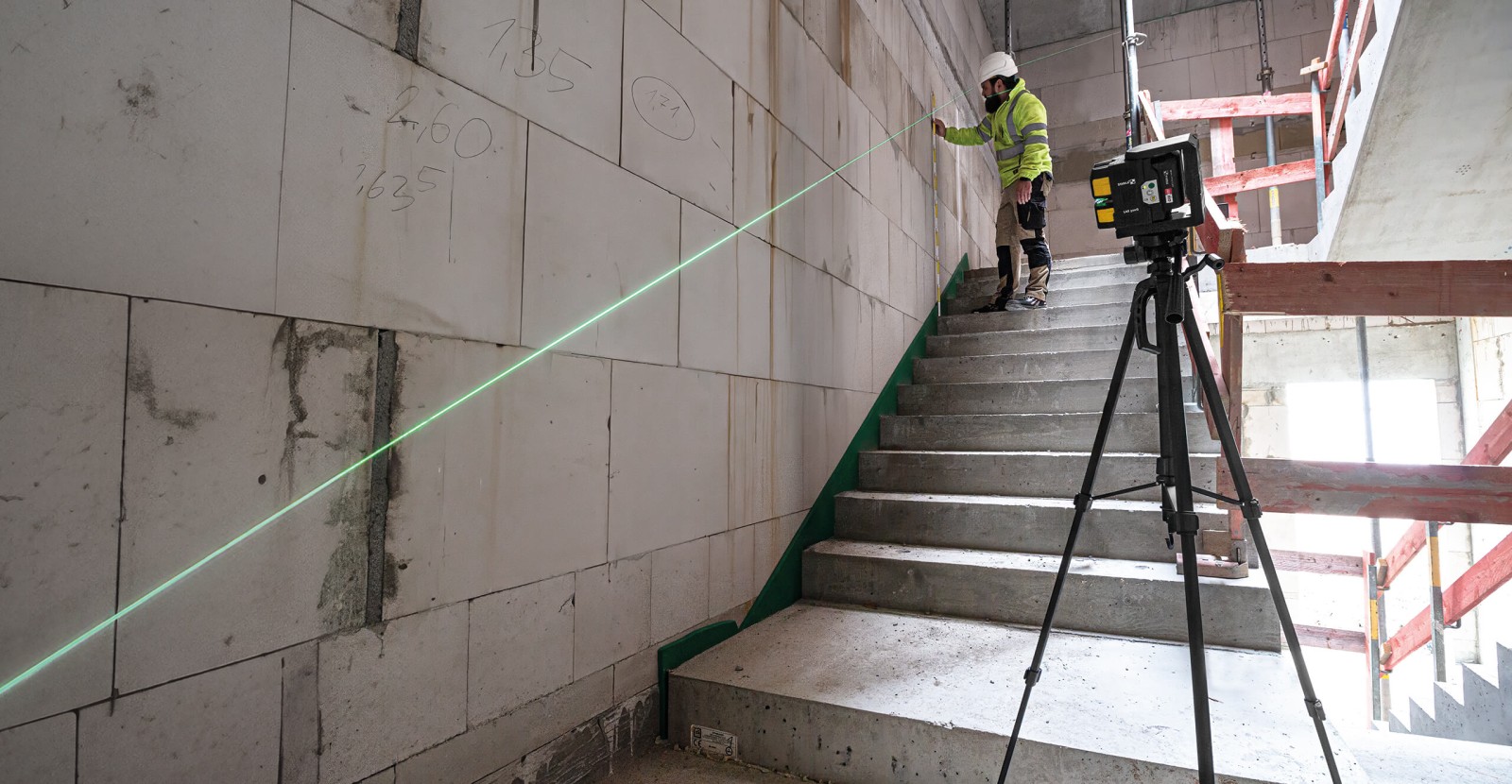

Manual mode: Positioning the laser at any angle with a locked pendulum mechanism.
Switchable pulse-modulated lines: compatible for working with line receivers (available as an option).

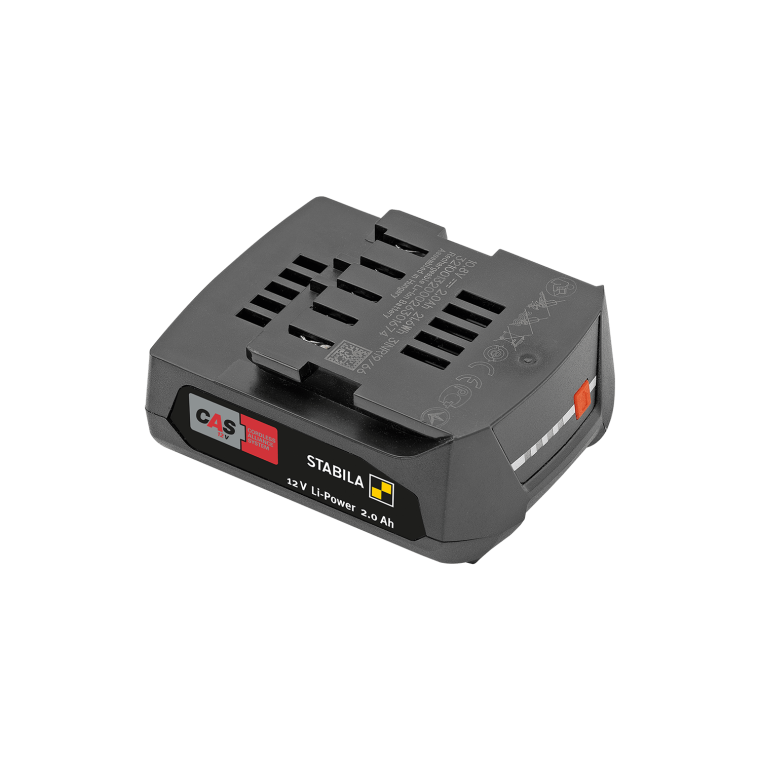

Long operating time: 12 V LI-POWER 2.0 Ah CAS rechargeable battery for up to 20 hours of use.
Short charging times: quick recharging in max. 45 minutes.
Protective housing for laser optics: Shock-absorbing soft grip exterior, rotatable housing and protective sliders prevent damage.

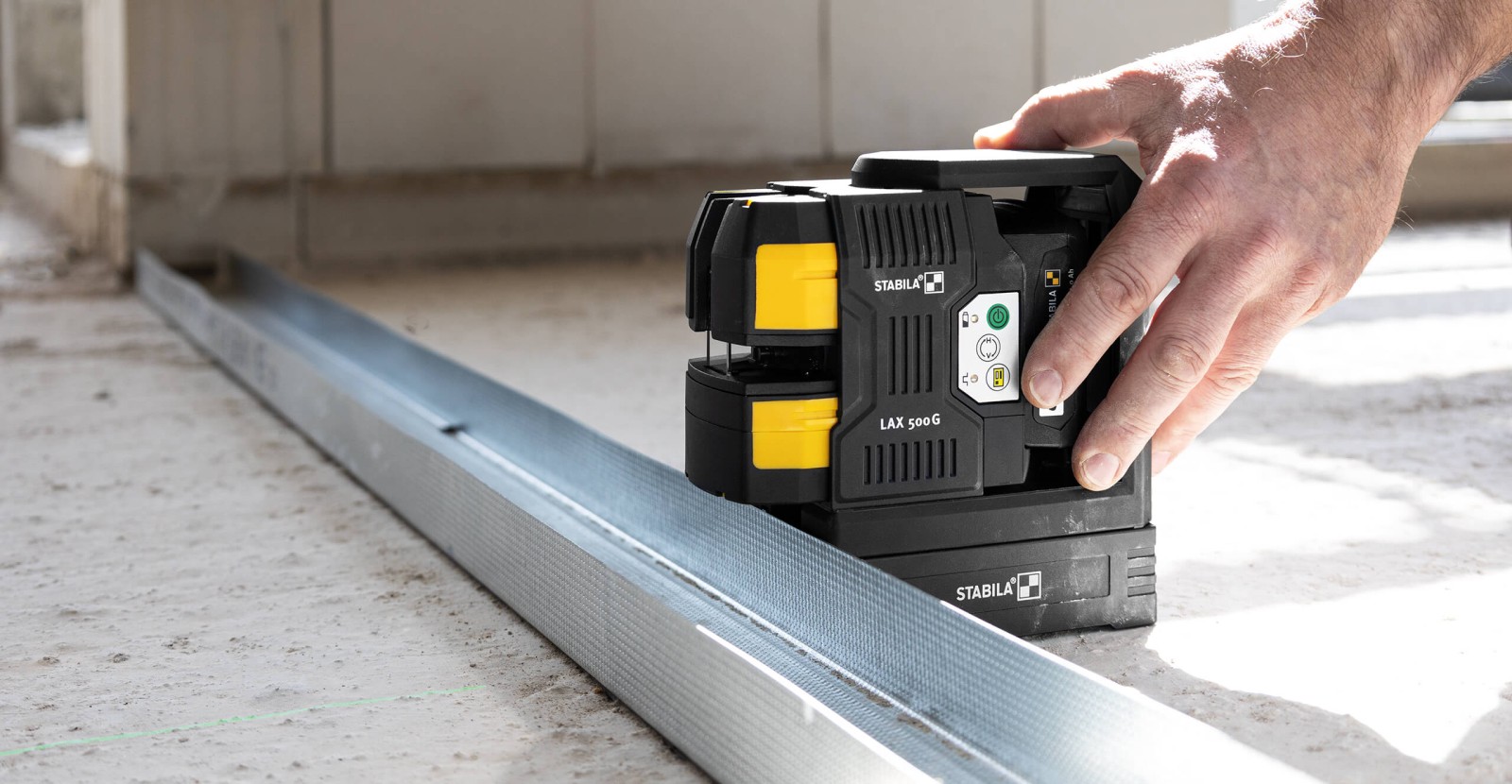

Removeable laser base allows the ability to work over bottom plate or base track.

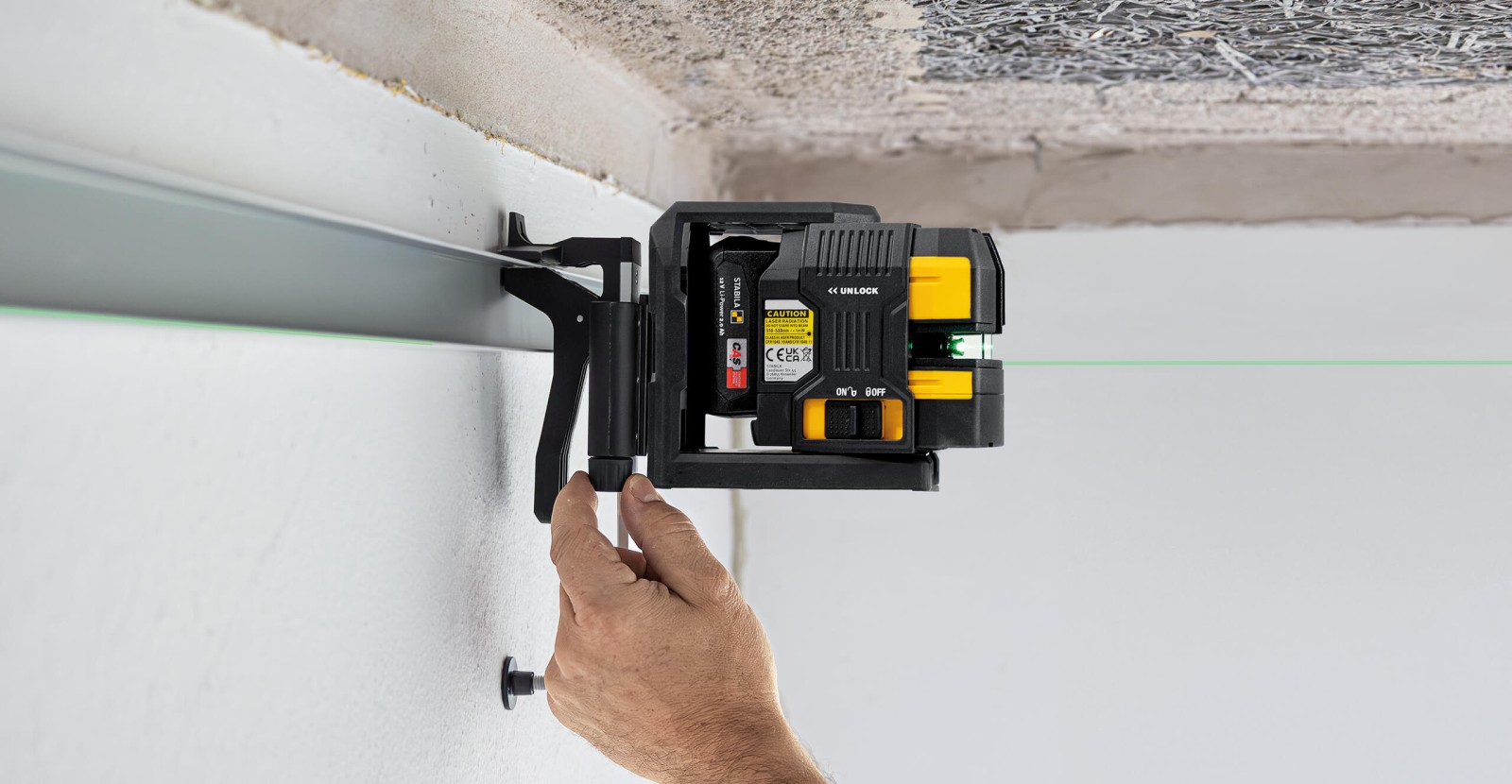

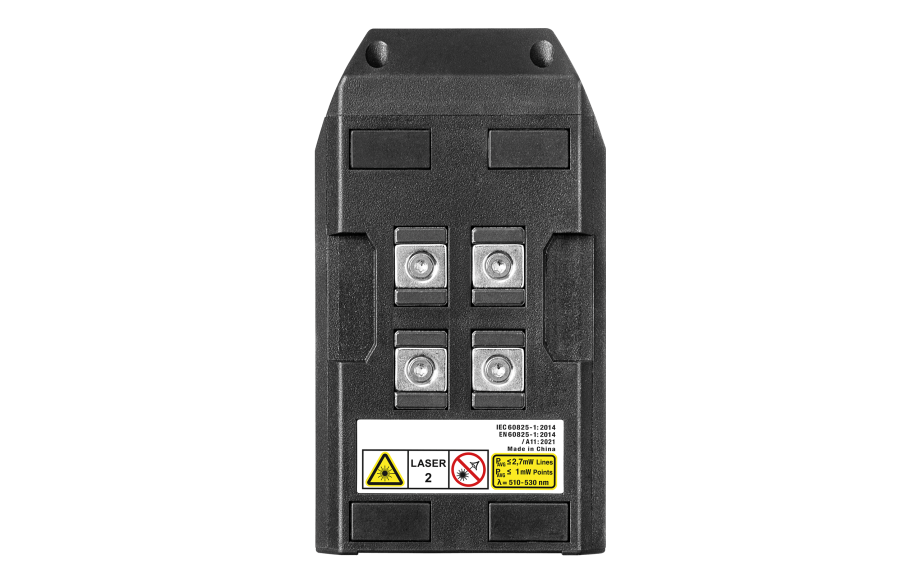

Flexible positioning: 1/4″ thread, rare-earth magnets and wall bracket.
Stable carrying case.
Protection rating IP 54 (without rechargeable battery).

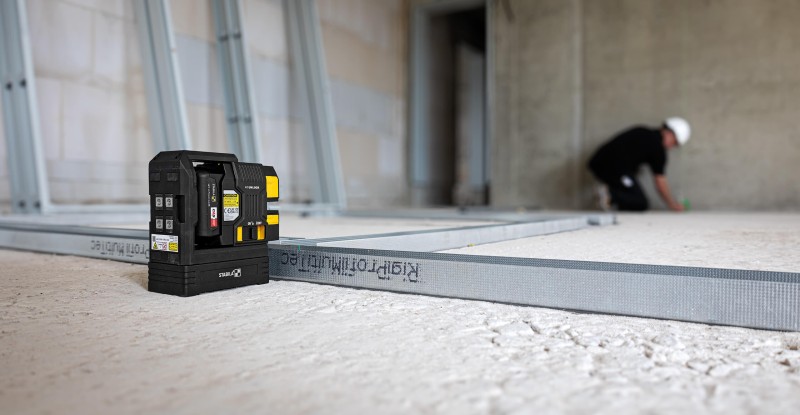

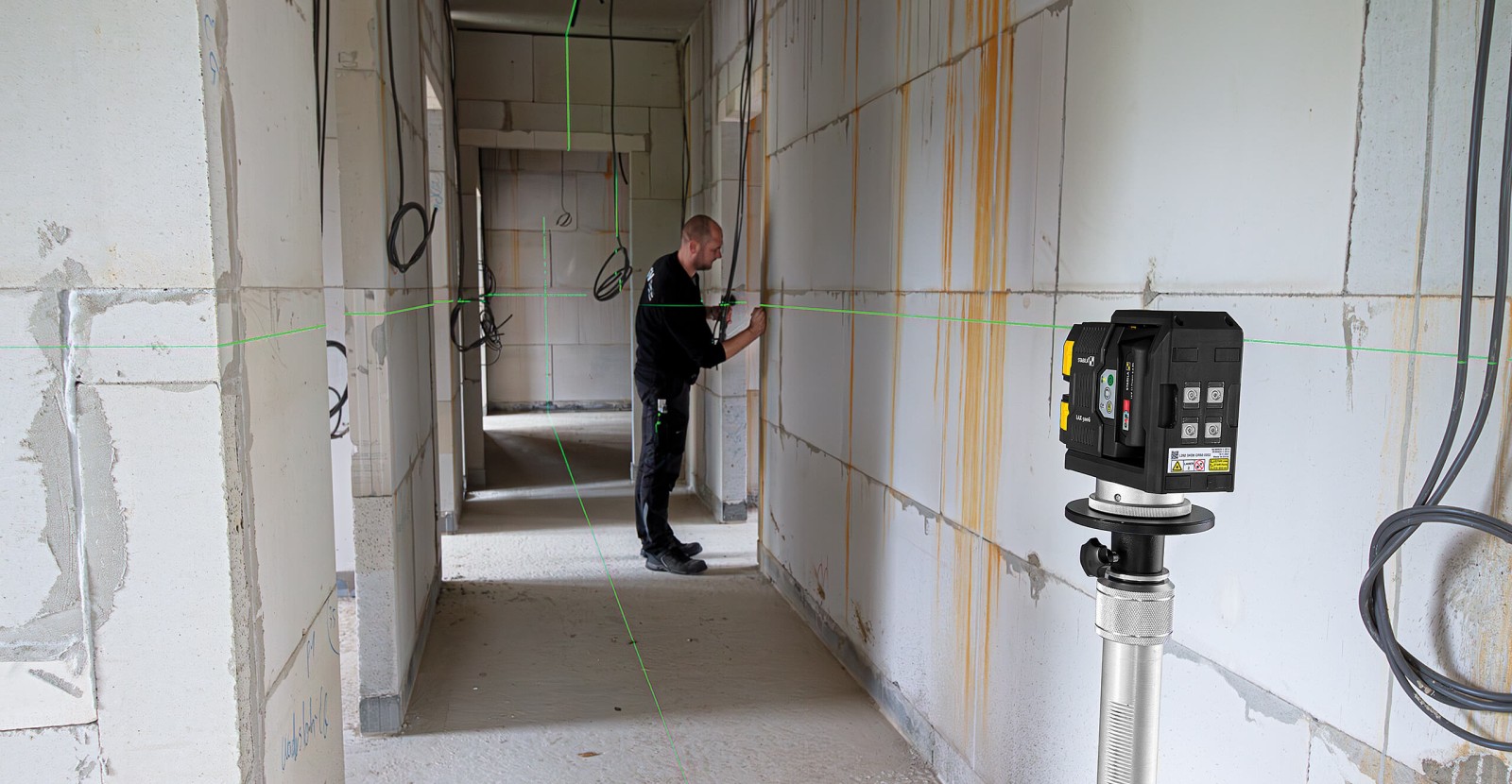

In drywall construction: Suspend ceilings together with the wall bracket, transfer layout from the floor to the ceiling, align profile rails, install partitions. For tiling: Lay out the tiling, align and lay floor and wall tiles. In electrical installation work: Mark switches and sockets, align cable ducts horizontally and vertically, align and install lighting. For installation work: Align pipe clamps horizontally and vertically, route cables and heating pipes, install radiators and sanitary facilities. For carpentry and joining work: Assemble kitchen cabinets, align worktops. In window construction: Level window heights.
