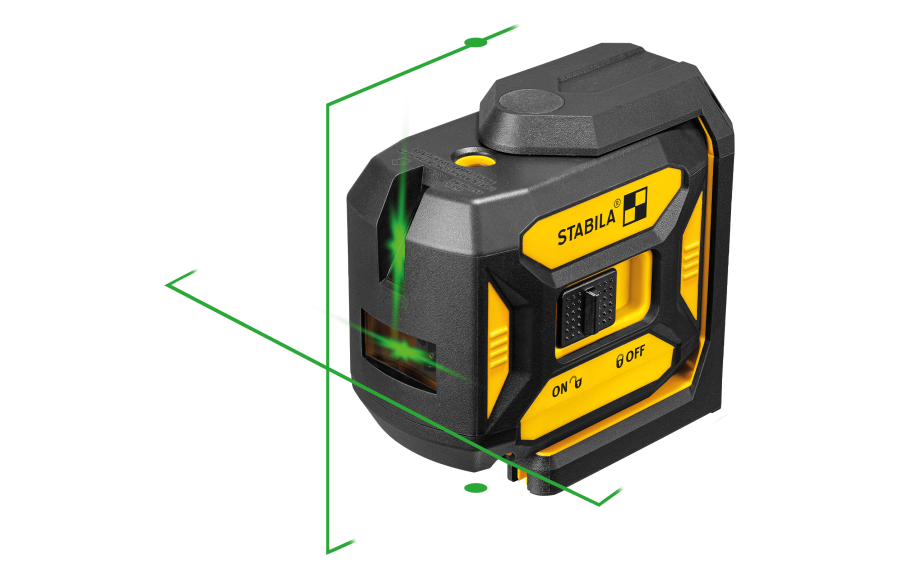

Cross line plus plumb dot laser LAX 320 G

  • Cross line plus plumb dot laser LAX 320 G, 5-piece set
Cross line plus plumb dot laser LAX 320 G, 5-piece set

Included in delivery

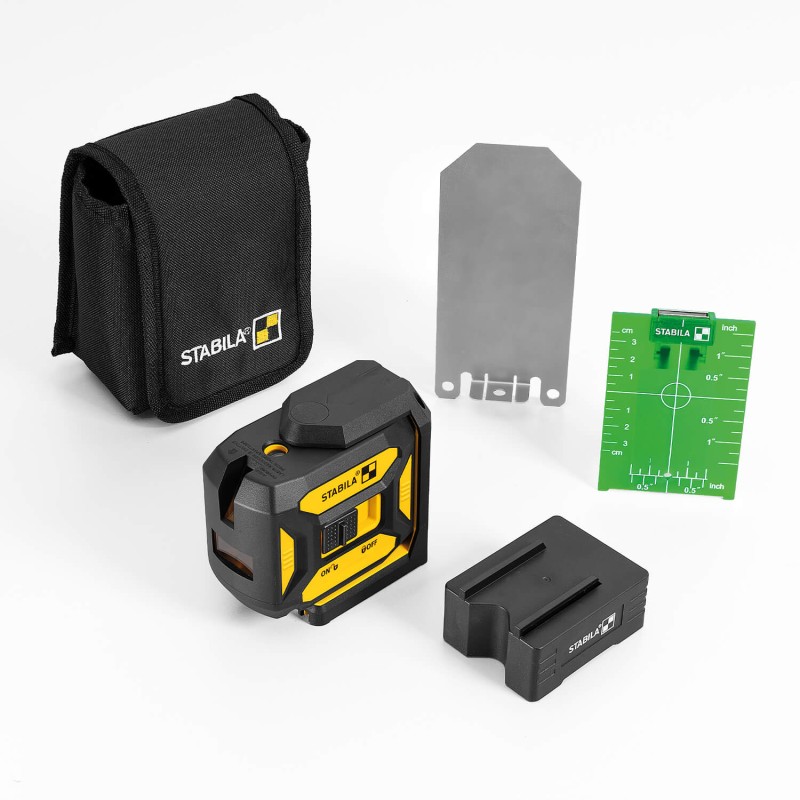

Cross line plus plumb dot laser LAX 320 G, laser base SLB 320, wall bracket, target plate, belt pouch, 3 x AA 1.5 V batteries

Cat. # 03190 UPC 0​8​9​6​3​4​0​3​1​9​0​1
Buy Online

Multi function. Optimum visibility. The compact laser for interior construction.

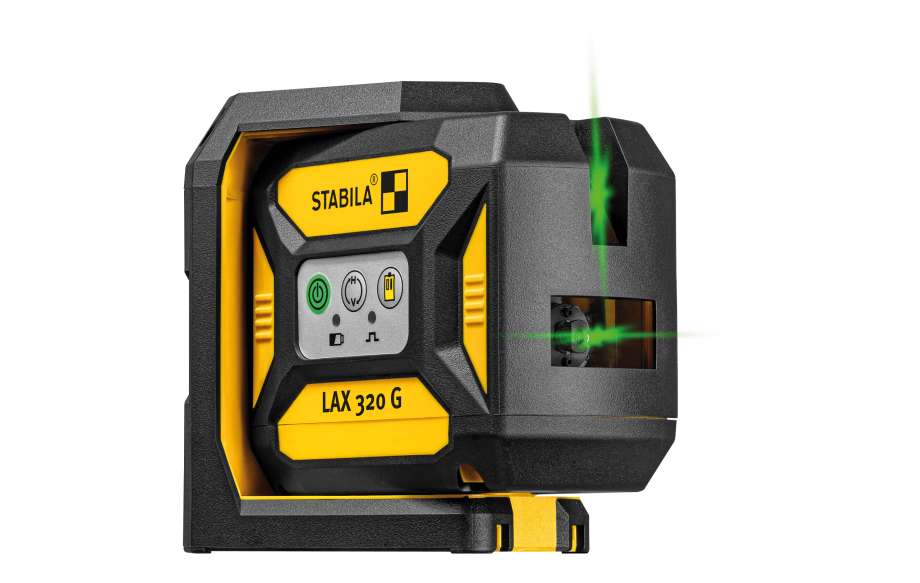

Discover the STABILA LAX 320 G, the compact cross line laser with plumb dots. With innovative GREENBEAM technology, this professional laser delivers long, razor-sharp lines for precision work at distances of up to 100 ft / 30 m. Manual mode enables flexible inclines, while the accessory set supports a range of applications. The screw-in housing optimally protects the laser optics in park position. Perfect for interior construction and everyone who relies on precision laser lines in their daily work. STABILA – work efficiently with perfect results!

Highlights

  • Compact laser that is always at hand and ready to use.
  • GREENBEAM technology for long, optimally visible laser lines.
  • Versatile use thanks to cross lines and plumb dots.
  • Effective optics protection with screw-in housing.
  • Flexible positioning: 1/4” thread, magnets, laser base and wall bracket.
Laser class
2
Output
< 1 mW
Laser wavelength
510 - 530 nm
Self-levelling range ±
4°
Levelling accuracy ±
1/8 in @ 30 ft
Laser beam accuracy (up) ±
3/16 in @ 30 ft
Laser beam accuracy (down) ±
1/4 in @ 50 ft
Operating life
20 h
Protection rating
IP 54
Tripod connection
1/4"
  • Compact, battery-operated cross line laser with plumb dots for efficient work on the horizontal and vertical levels.
  • GREENBEAM technology: direct work on sharp and optimally visible lines – up to 100 ft / 30 m away.
  • High-performance diodes: the vertical line almost covers the entire room.
  • Manual mode: positioning of laser at any inclination with locked pendulum.
  • Fast self-leveling: immediate use thanks to pendulum technology.
  • Switchable pulse-modulated lines: compatible with working with line receivers (available as an option).
  • Energy-saving laser diodes: Operating time of up to 20 hours.
  • Screw-in housing: protects laser optics against dust and scratches.
  • Shock-absorbent STABILA soft grip casing protects the laser against damage from falling.

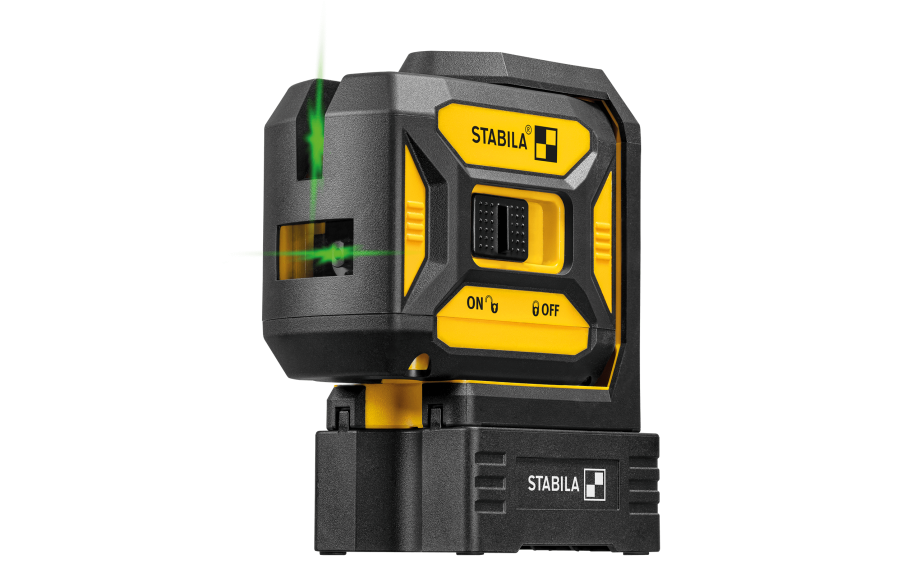

  • Attachable laser base: direct work on U-profiles.

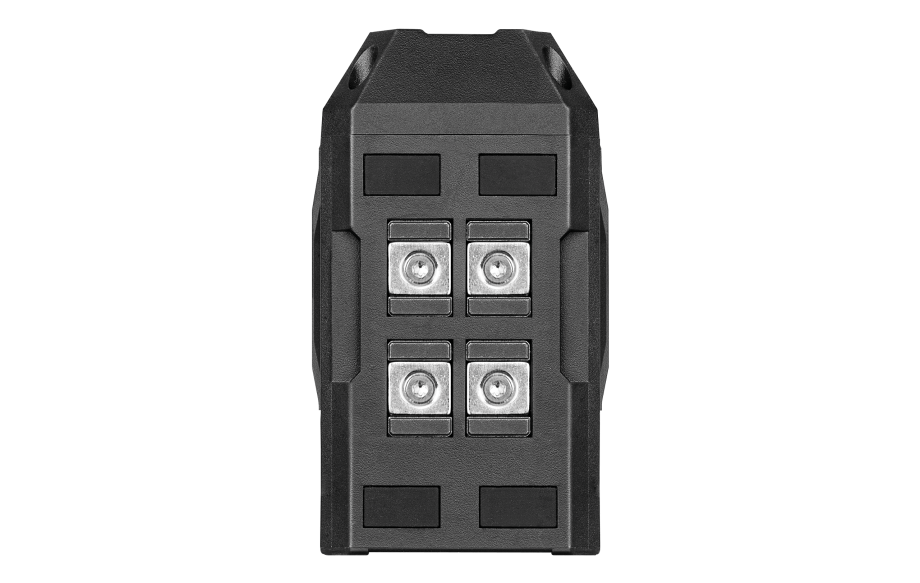

  • Flexible positioning: 1/4” thread, rare-earth magnets, wall bracket.
  • Belt pouch for safe storage.
  • Protection rating IP 54.

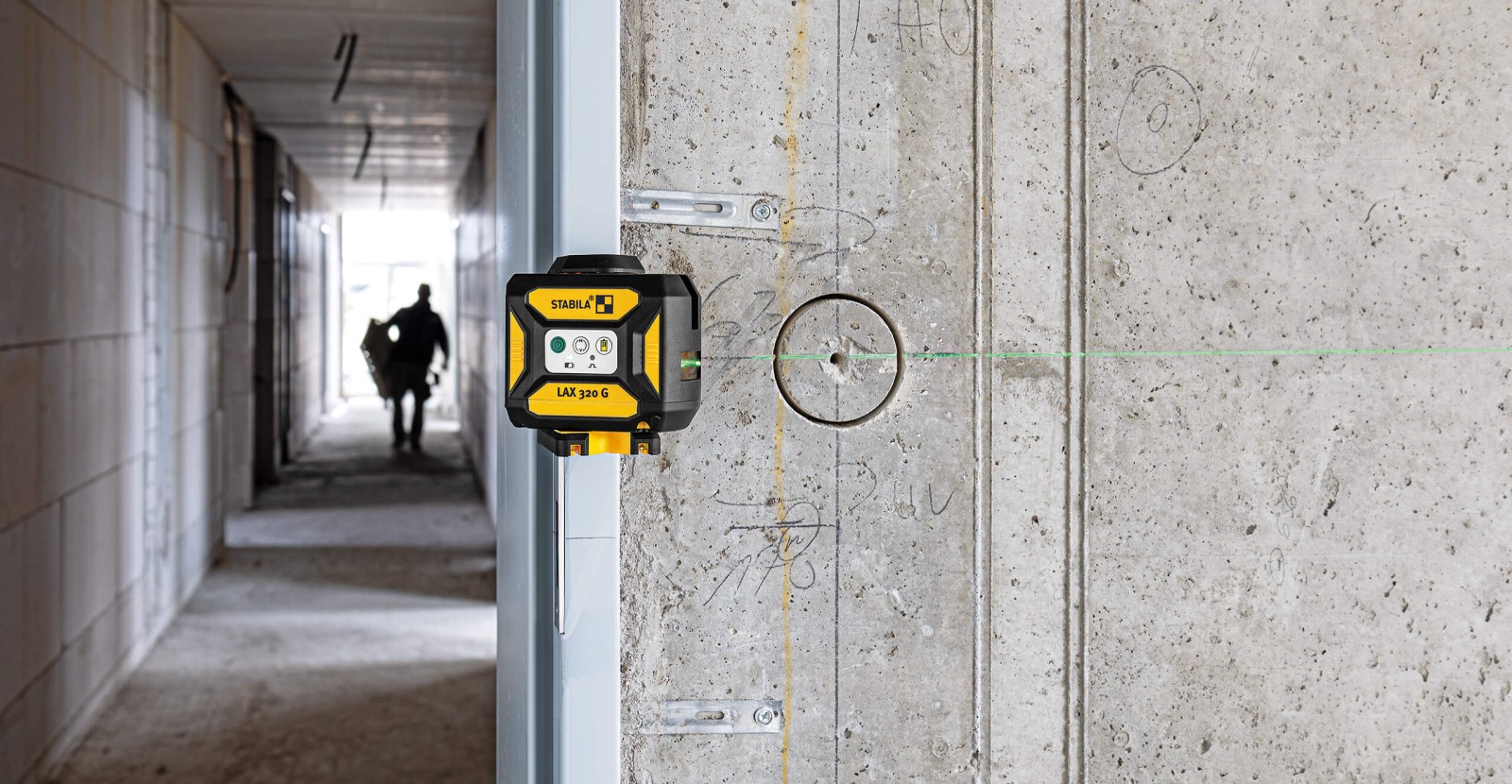

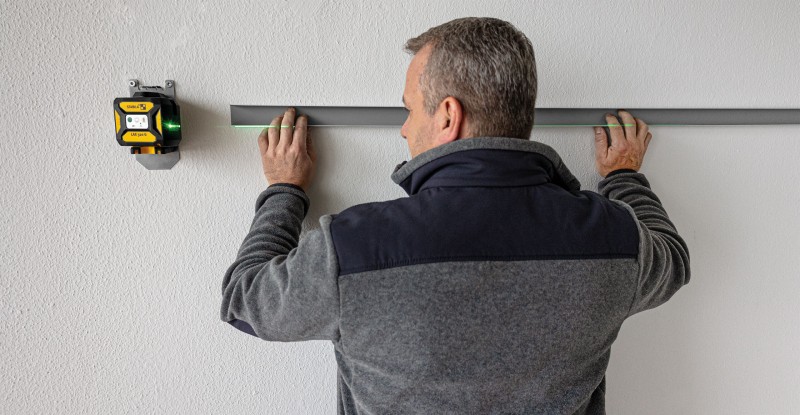

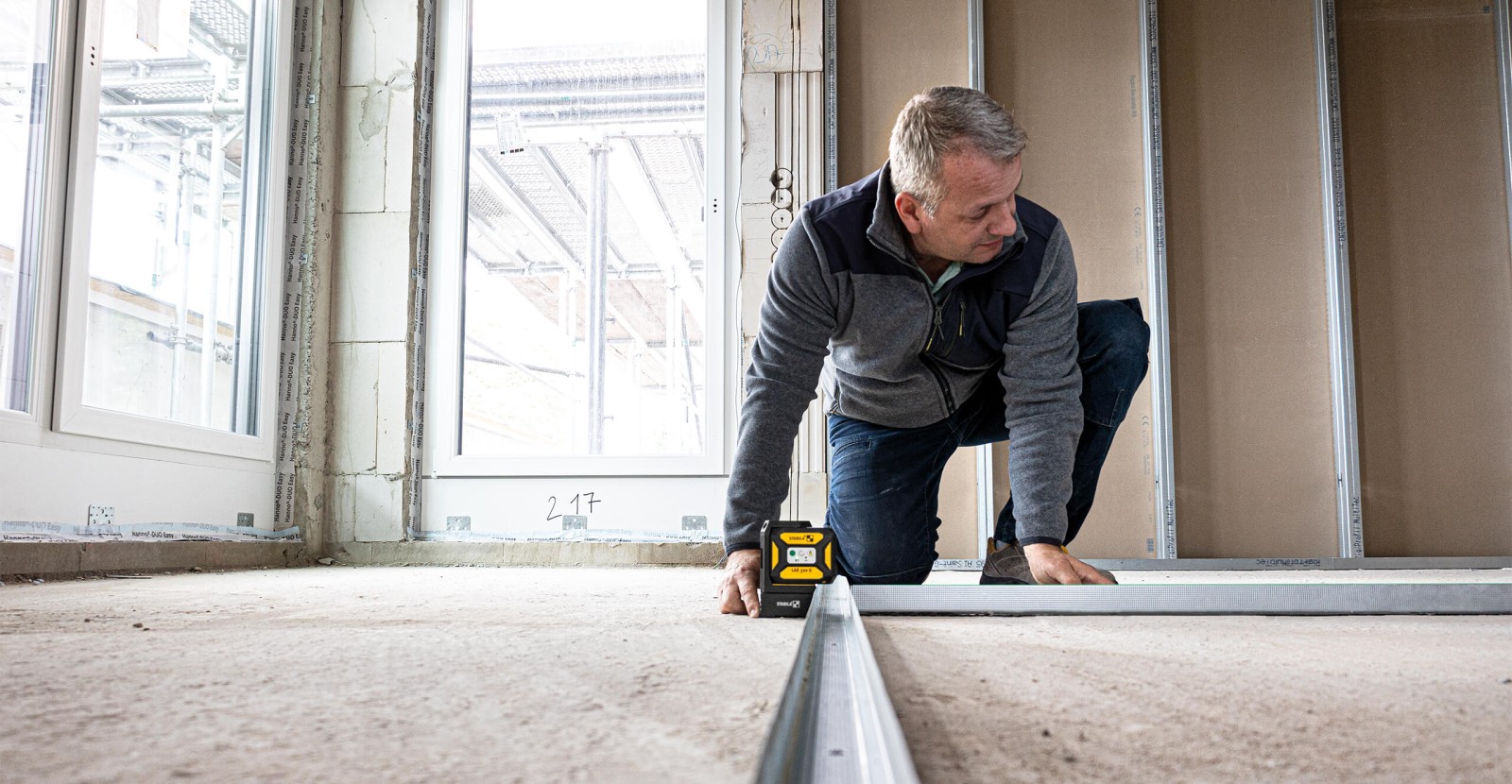

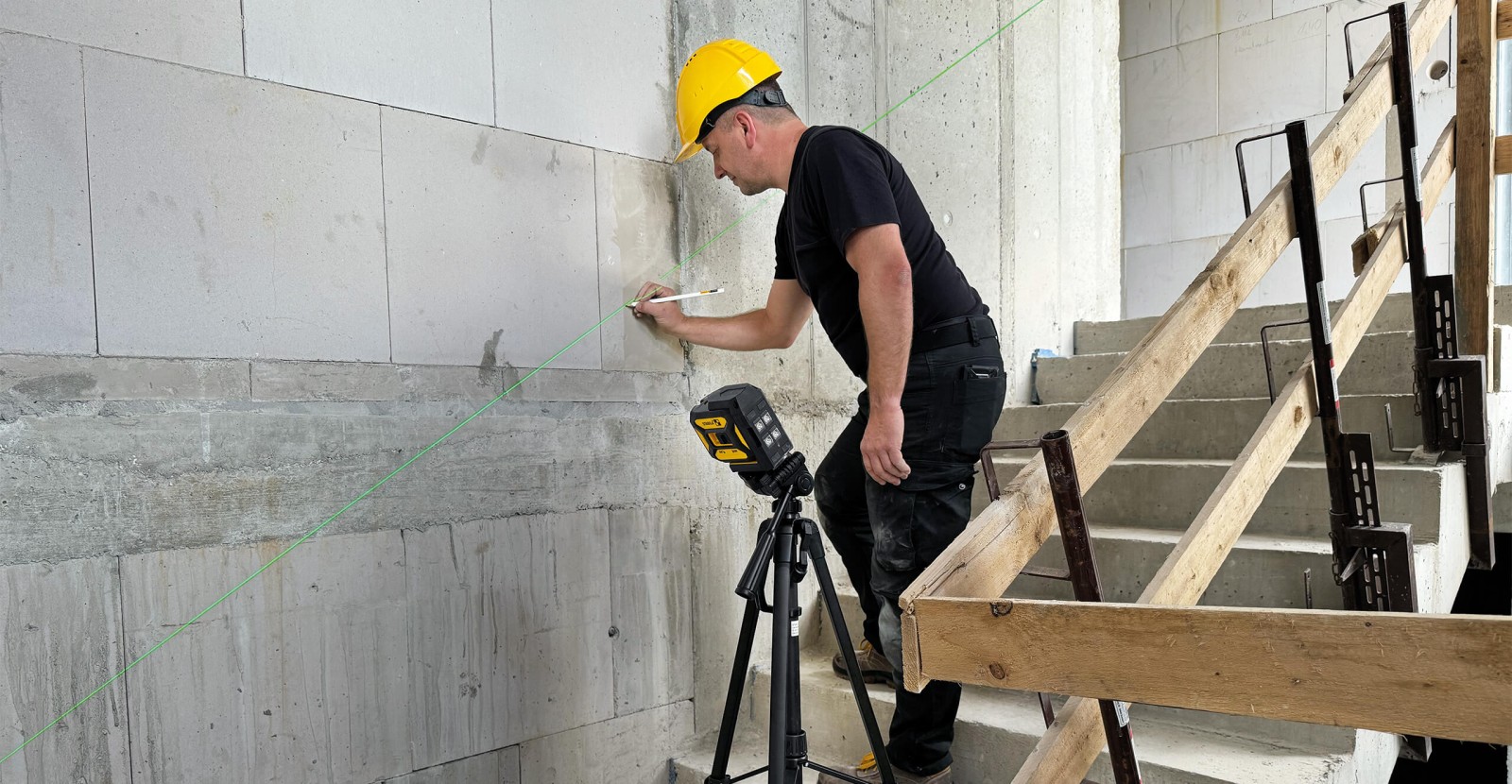

In drywall construction: suspending ceilings in conjunction with the wall bracket, transferring layouts from the floor to the ceiling, aligning profile rails and positioning partition walls. For tiling work: marking out the tile layout, aligning and laying floor and wall tiles. In electrical installation work: marking switches and sockets, aligning cable ducts horizontally and vertically to each other, aligning and mounting lights. For installation work: aligning pipe hangers vertically and horizontally to each other, laying cables and heating pipes, mounting radiators and sanitary facilities. For joinery: assembling kitchen cupboards, aligning worktops. In window fitting: leveling the window height.
