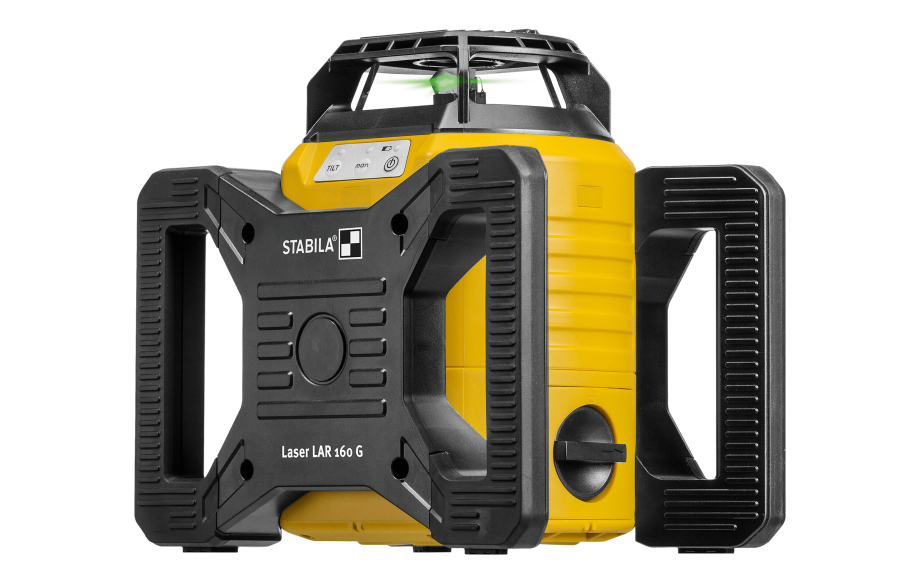

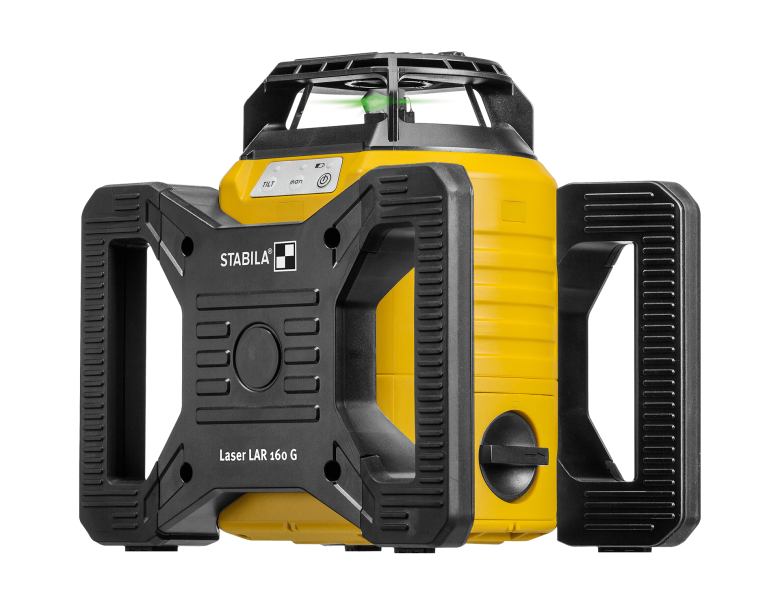

LAR 160 G rotary laser

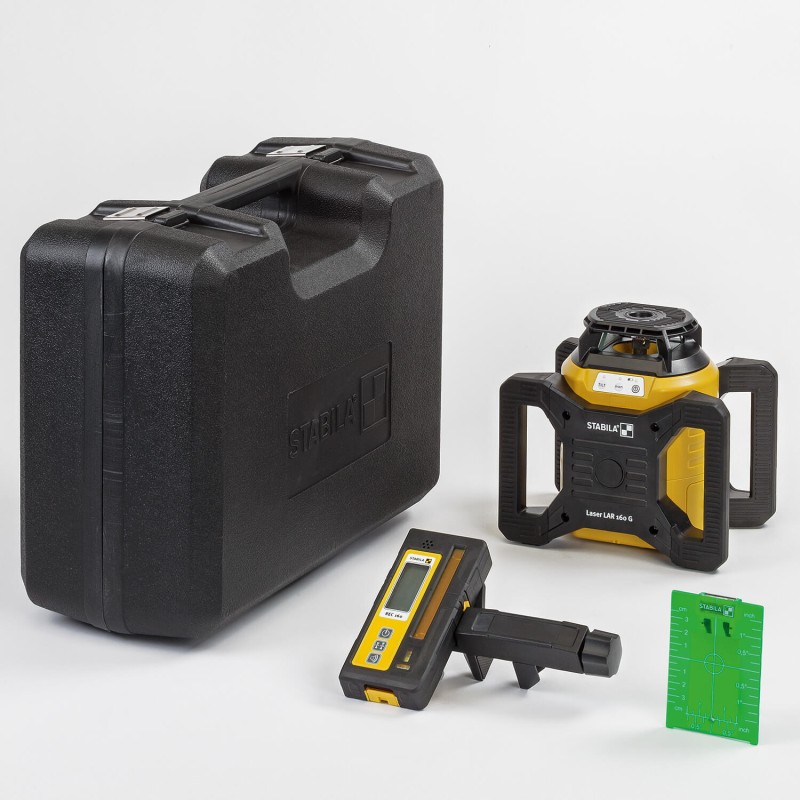

LAR 160 G rotary laser kit

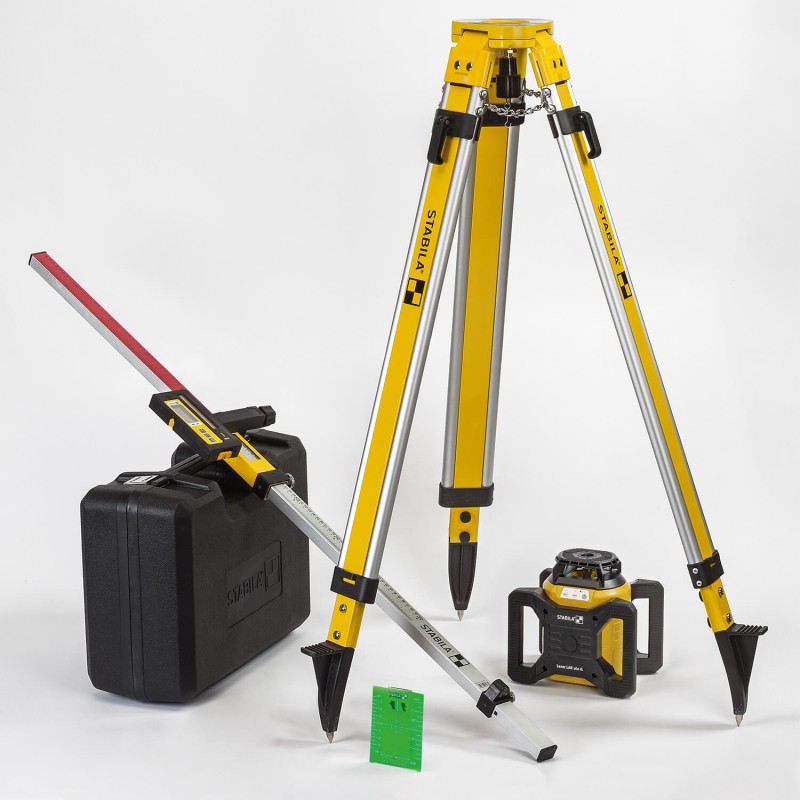

LAR 160 G rotary laser set with tripod and grade rod

Included in delivery

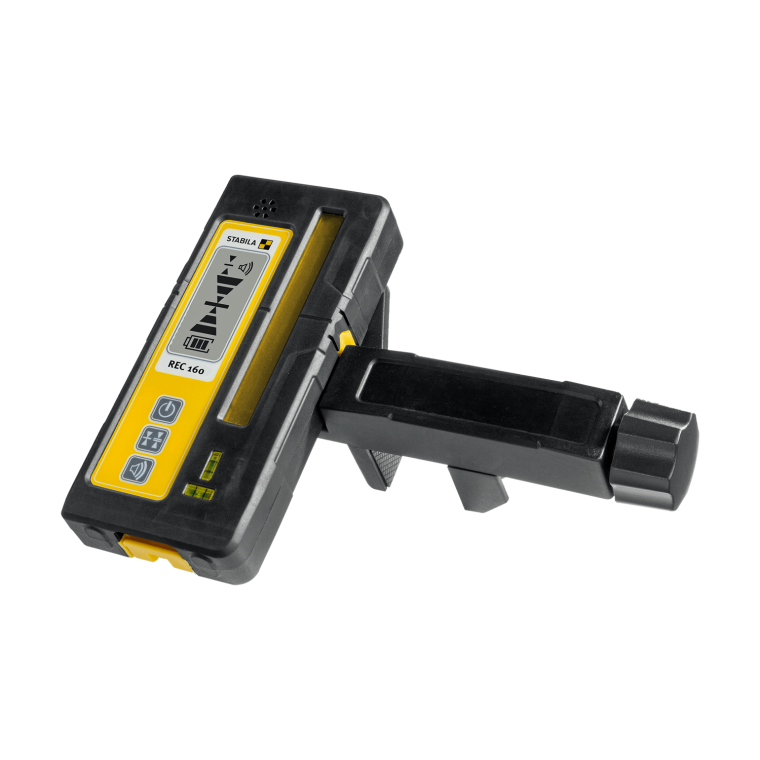

LAR 160 G rotary laser, REC 160 RG receiver with clamp, manual, hard case, 2 x D 1.5 V batteries, 2 x AA 1.5 V batteries

Cat. # 04510 UPC 089634045106

Buy Online

Operating instructions

Simply powerful – interior and exterior rotary laser with GREENBEAM technology for maximum precision over large distances

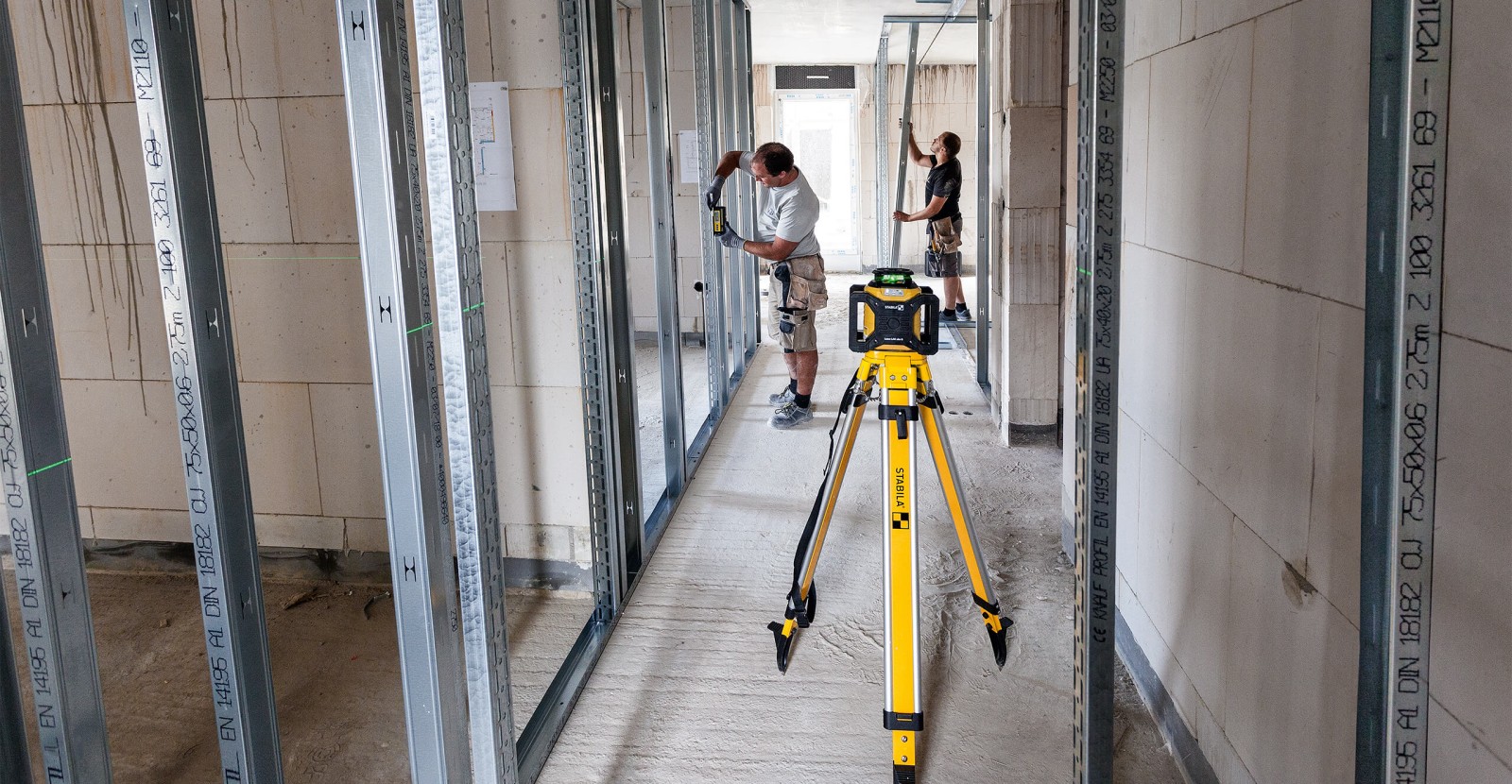

Are you looking to achieve vertical and horizontal leveling for major outdoor or interior construction projects? Do you need to work precisely and avoid costly measurement errors and rework? Then the STABILA LAR 160 G with GREENBEAM technology is the right rotation laser for you. It is quick to set up, easy to operate and suitable for use over large distances when linked to a receiver. All in all, it is a high-quality product that can endure the elements and deliver precise results – exactly what you need.

Highlights

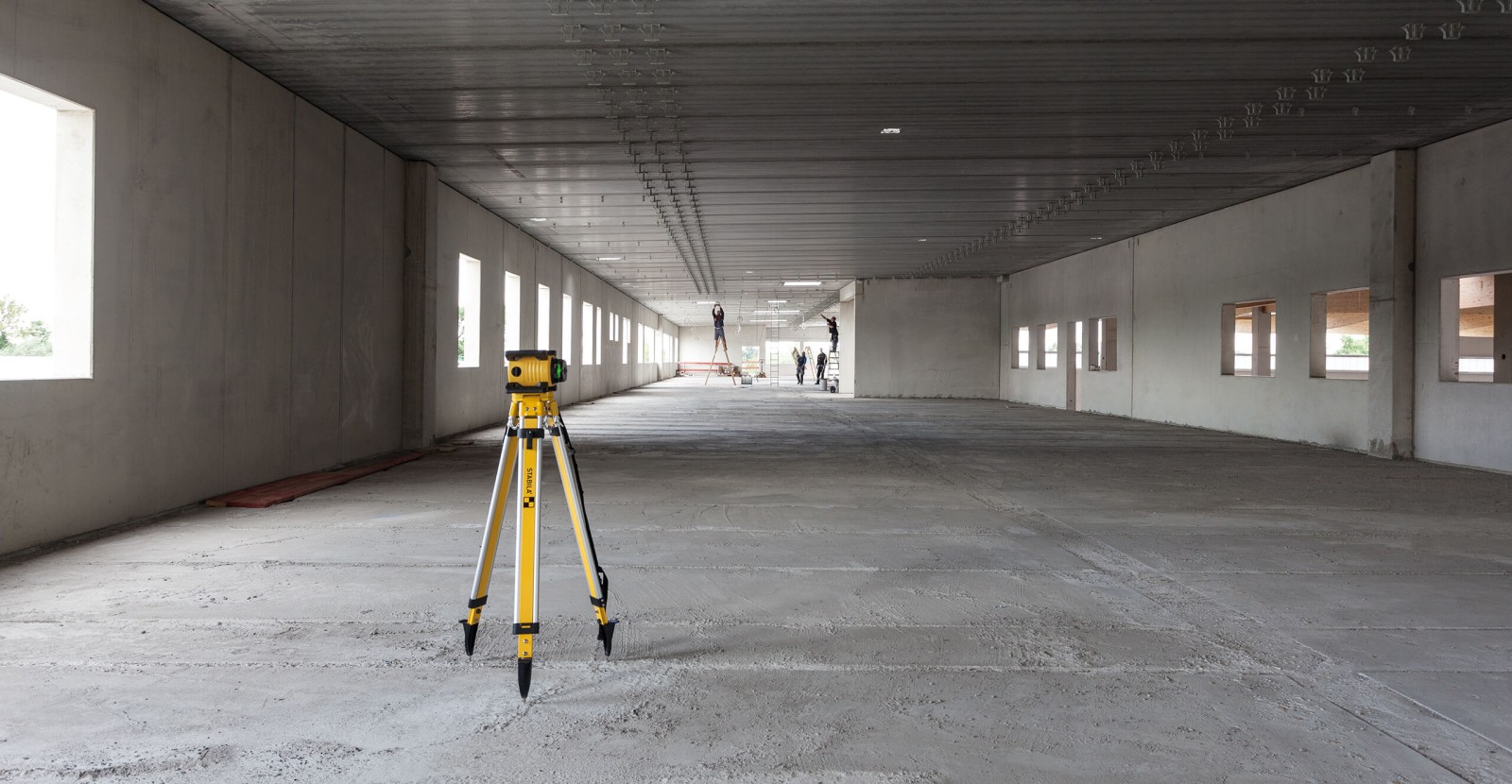

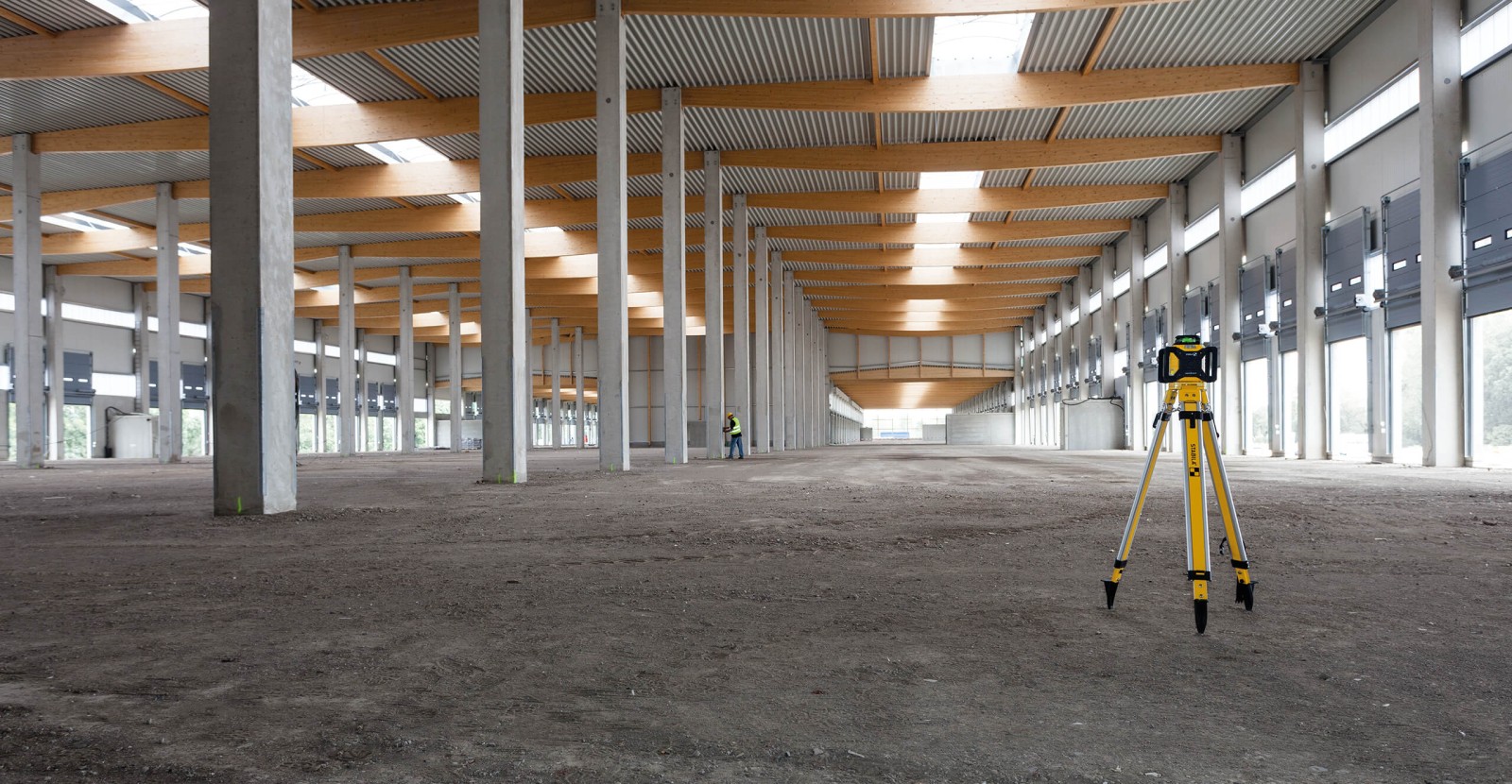

High-performance receiver – large working area of up to 2000 ft (600 m) in diameter.
Working to a high degree of precision – leveling accuracy of 1/8 in @ 100 ft.
Green laser beams for improved visibility indoors.

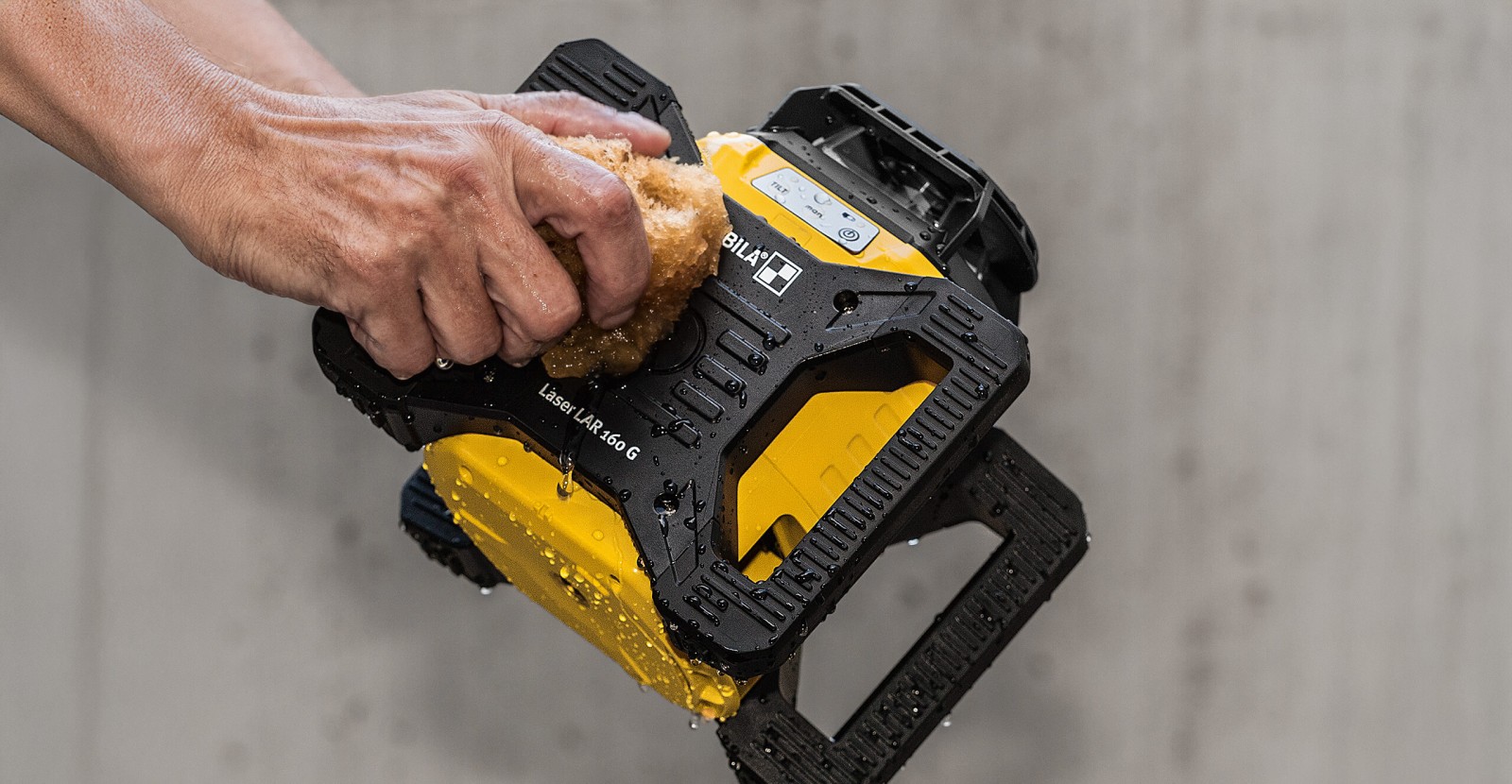

Suitable for the construction site – waterproof and dustproof (IP 65).

Laser class

2

Output

< 1 mW

Laser wavelength

510 - 530 nm

Self-levelling range ±

5°

Levelling accuracy ±

1/8 in @ 100 ft

Diameter of working area for set receiver

2000 ft

Operating life

30 h

Protection rating

IP 65

Tripod connection

5/8"-11

Fully automatic, motor-driven rotary laser – high leveling accuracy of 1/8 in @ 100 ft, fast self-leveling function within 20 seconds.
STABILA GREENBEAM technology for improved visibility.
Four laser functions for versatile use – horizontal and vertical rotation, plumb-line function and square in vertical operation.
IP 65 – dust and waterproof.
Shock-absorbent casing provides protection against impacts – the stable housing cover also protects the laser optics.
Easy to use via three control buttons – on/off, tilt mode, manual mode.

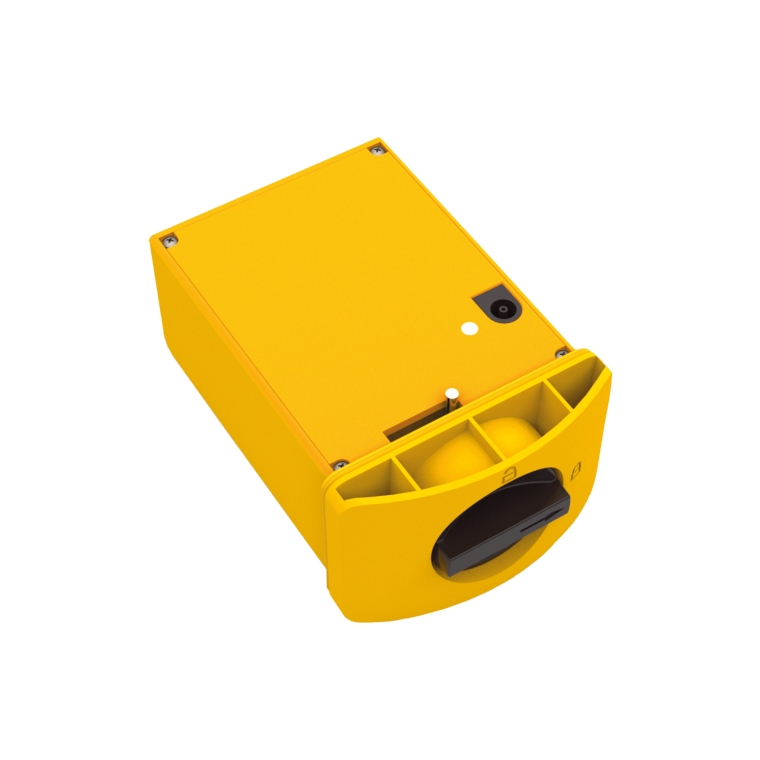

Battery drawer – easy replacement.
Large working area with REC 160 RG set receiver – up to 2000 ft (600 m) in diameter.

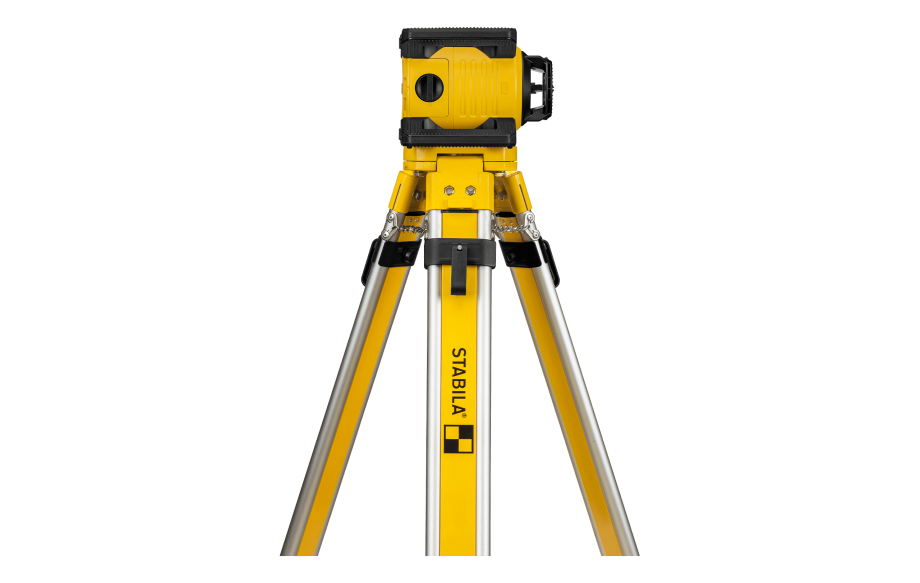

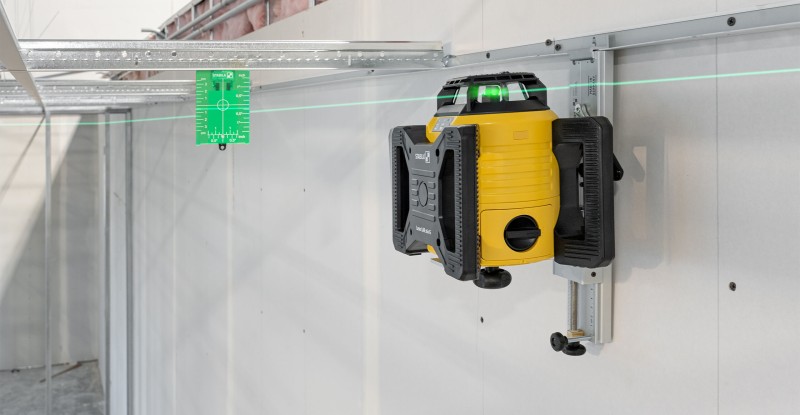

Two mounting points for vertical and horizontal applications, 5/8 x 11 threads integrated in the housing.
Green, magnetic high-visibility plastic target plate with cross-hair.
Hard shell case for laser and accessories.

Masonry – setting benchmarks and maintaining elevations Concrete – layout foundations footings & walls, establishing elevations, setting grade for flatwork Commercial construction- establish control lines, layouts and framing wall & soffits, large acoustical ceilings Hardscape – driveways & patio leveling and retaining wall alignment & layouts. Residential construction- wall layout & squaring slabs, setting exterior siding elevations. General propose leveling. Excavation/ Sewer – site work and grading. MEP trades. Establishing elevations and transferring overhead layouts, pipes, drains, ductwork.
