Type 106TM Magnetic Extendable Plate Levels

72 in
84 in

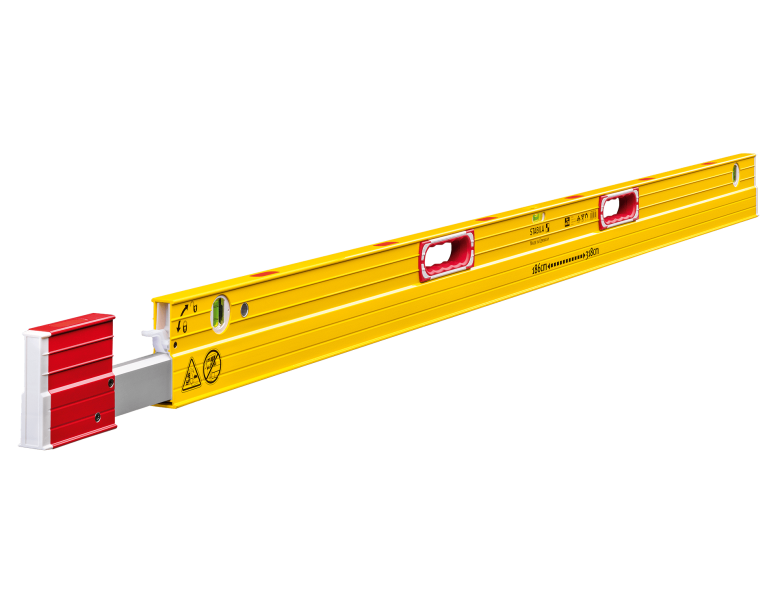

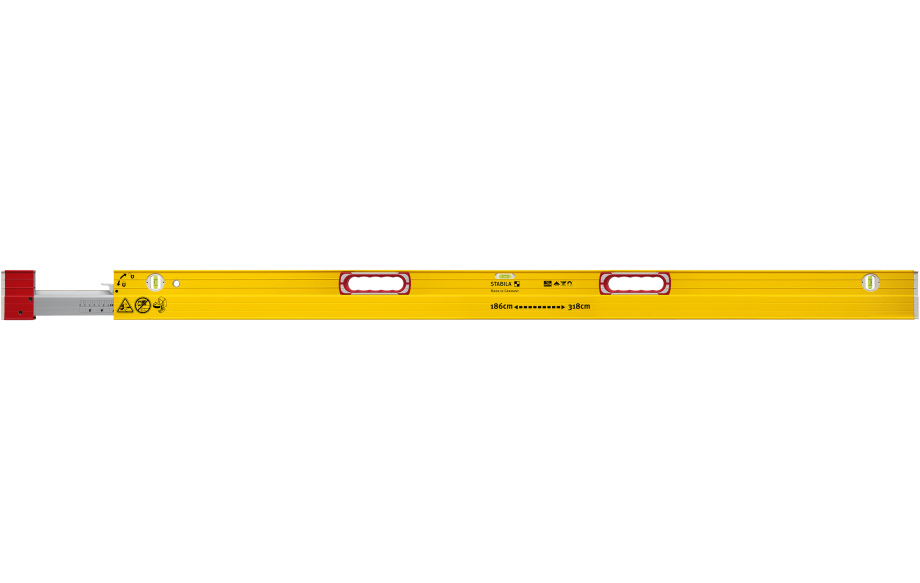

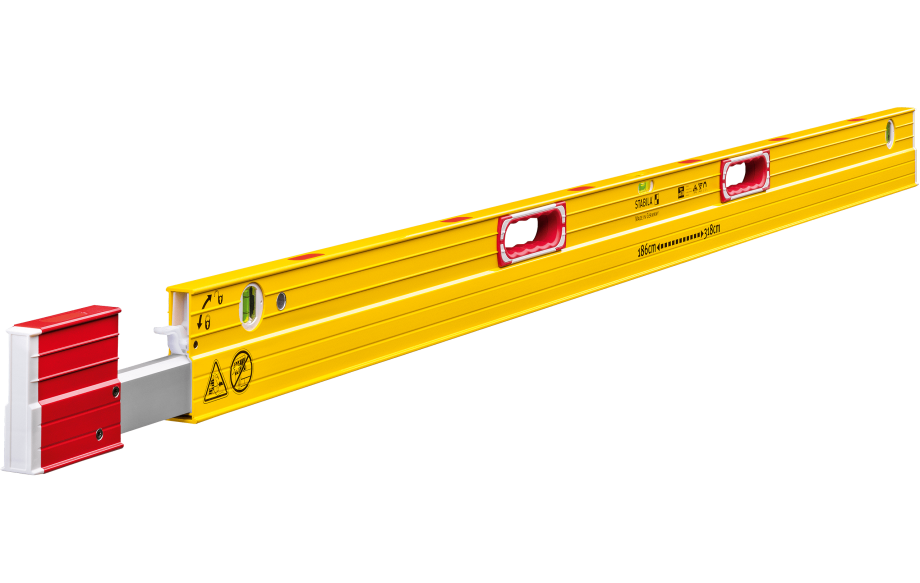

Type 106TM 6ft–10ft Plate Level with Rare Earth Magnets

Length 72 in
Length (from–to) 73,5-125,25 in

Cat. # 34610 UPC 089634346104

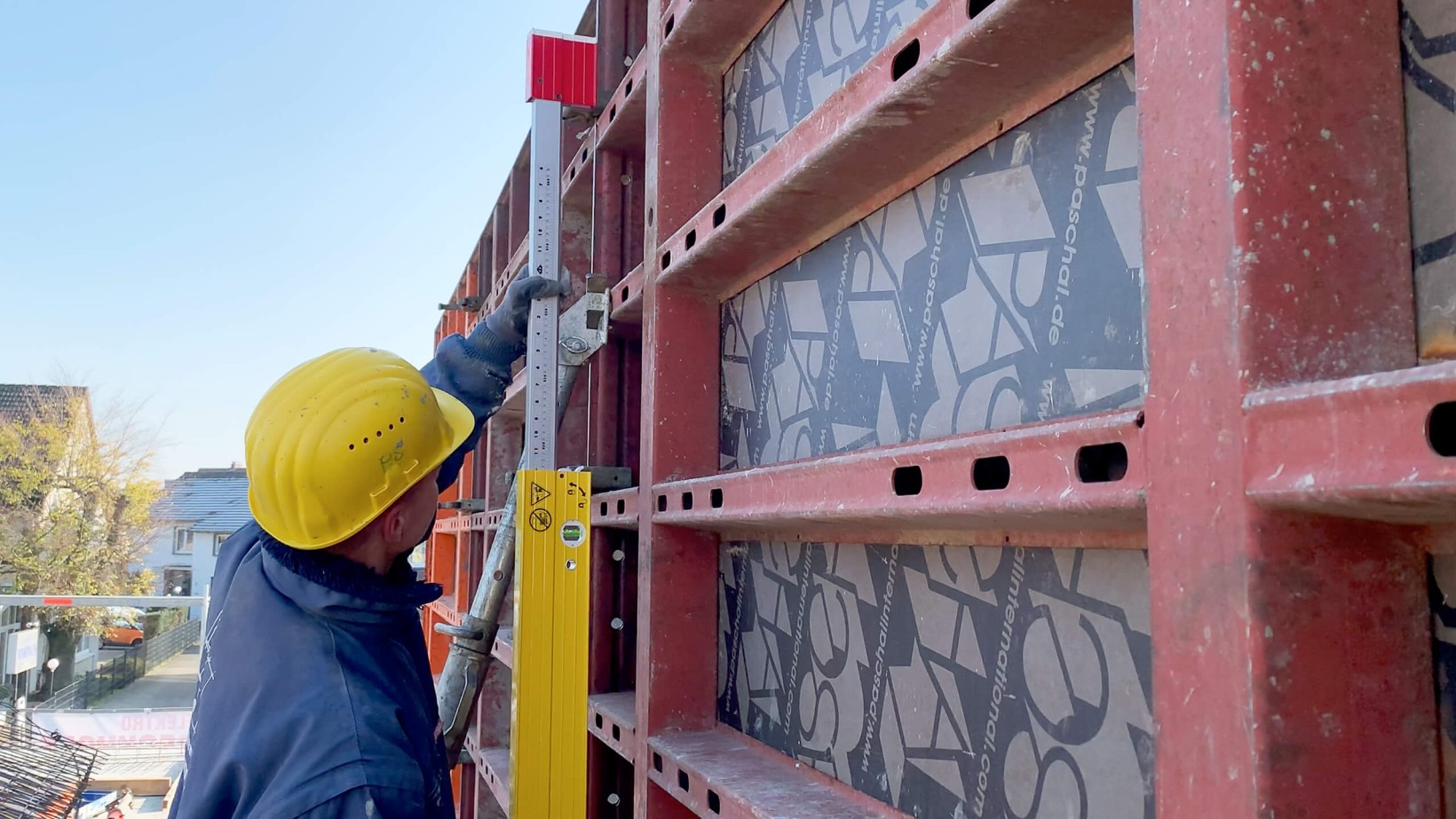

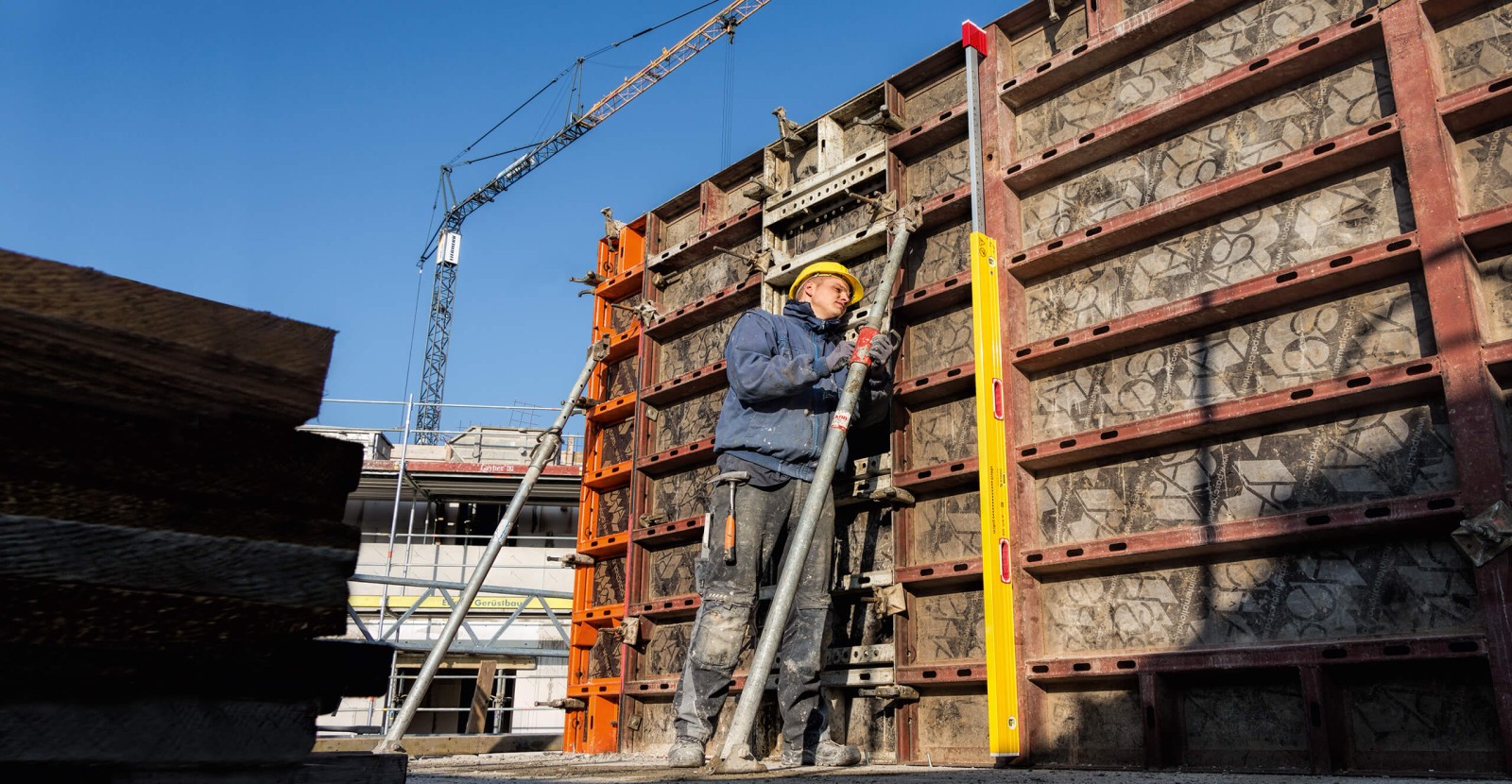

Extra-long spirit level with extra-strong adhesion for hands-free work

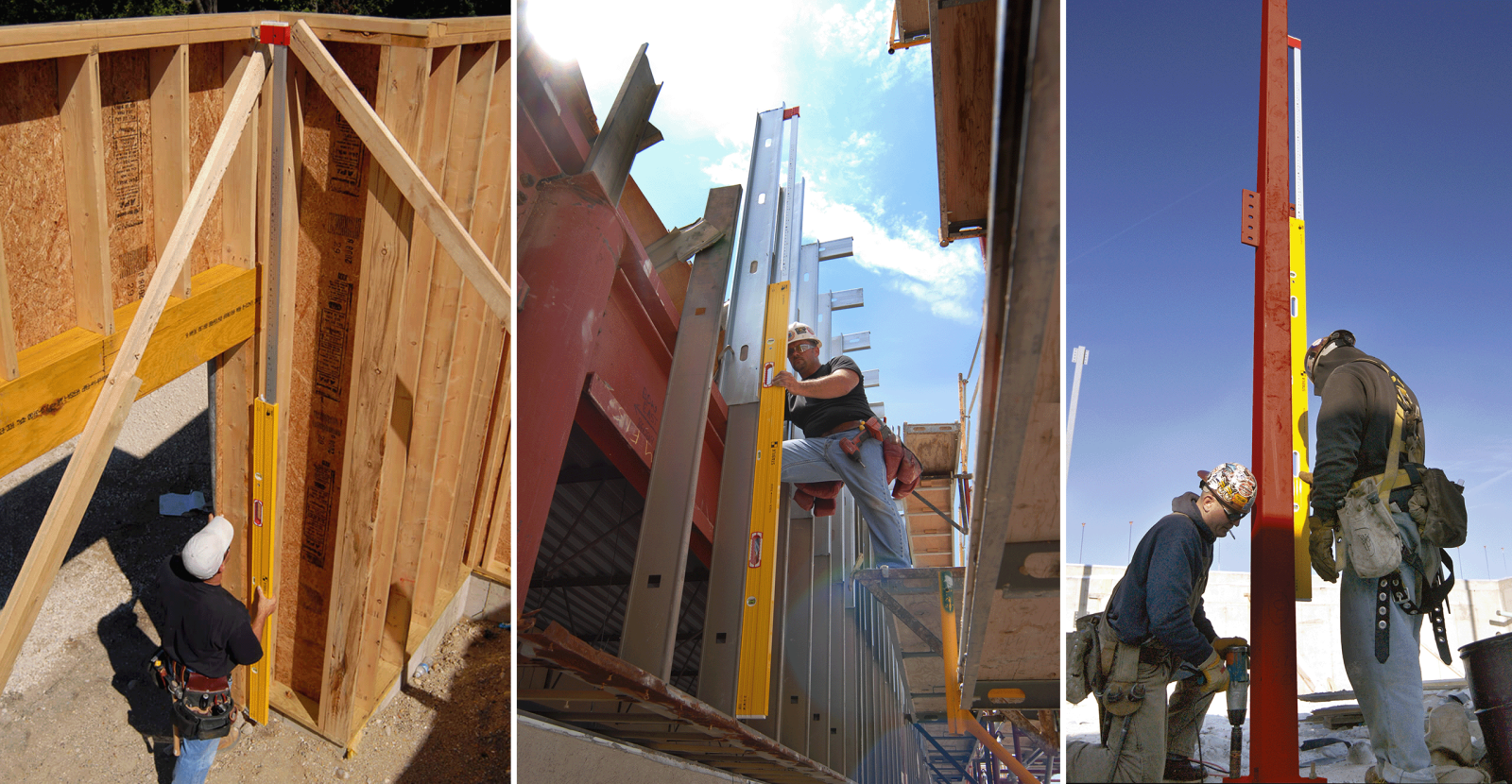

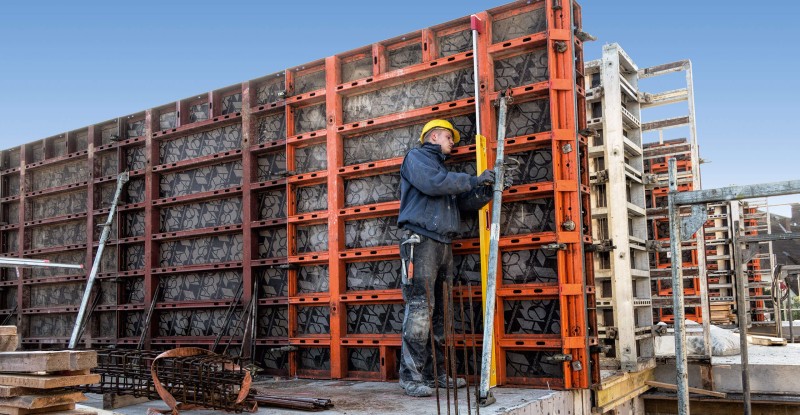

STABILA Rare Earth Magnetic Plate Levels adhere to metal with tremendous force. These magnetic levels allow you to work hands free with precision and speed.

Highlights

Flush mounted rare-earth magnetics wipe clean and allow for hands-free use.
Strong reinforced frame.
Plumb vial always at eye level.
Opposite side is a measuring surface and straight edge.

Measurement accuracy in normal position ±

1/32in @ 72in

Measurement accuracy in reverse position ±

3/64in @ 72in

Measurement accuracy in extended normal position ±

1/8in @ 120in

Number of measuring surfaces

2

Magnet system

Recessed Rare Earth

Profile

Reinforced 2 chamber profile

End caps

Standard

STABILA Type 106TM Rare Earth Magnetic Plate Levels.
Flush mounted magnets wipe clean and allow for hands-free use.
Strong reinforced frame.
Two hand grips.

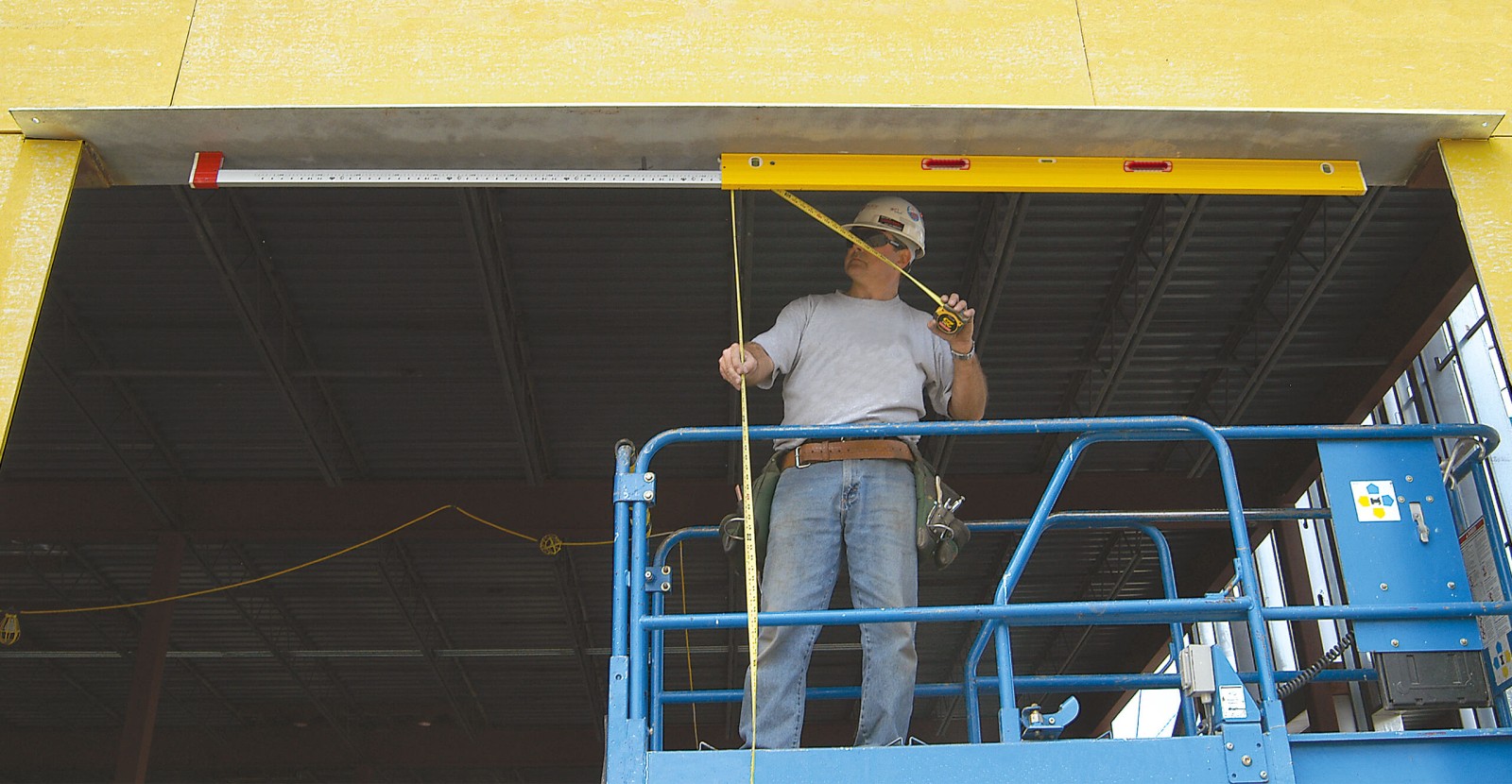

Hang hole in the frame to keep the level off of the floor when not in use.
6 sided keyed extension rail delivers smooth and rigid operation.

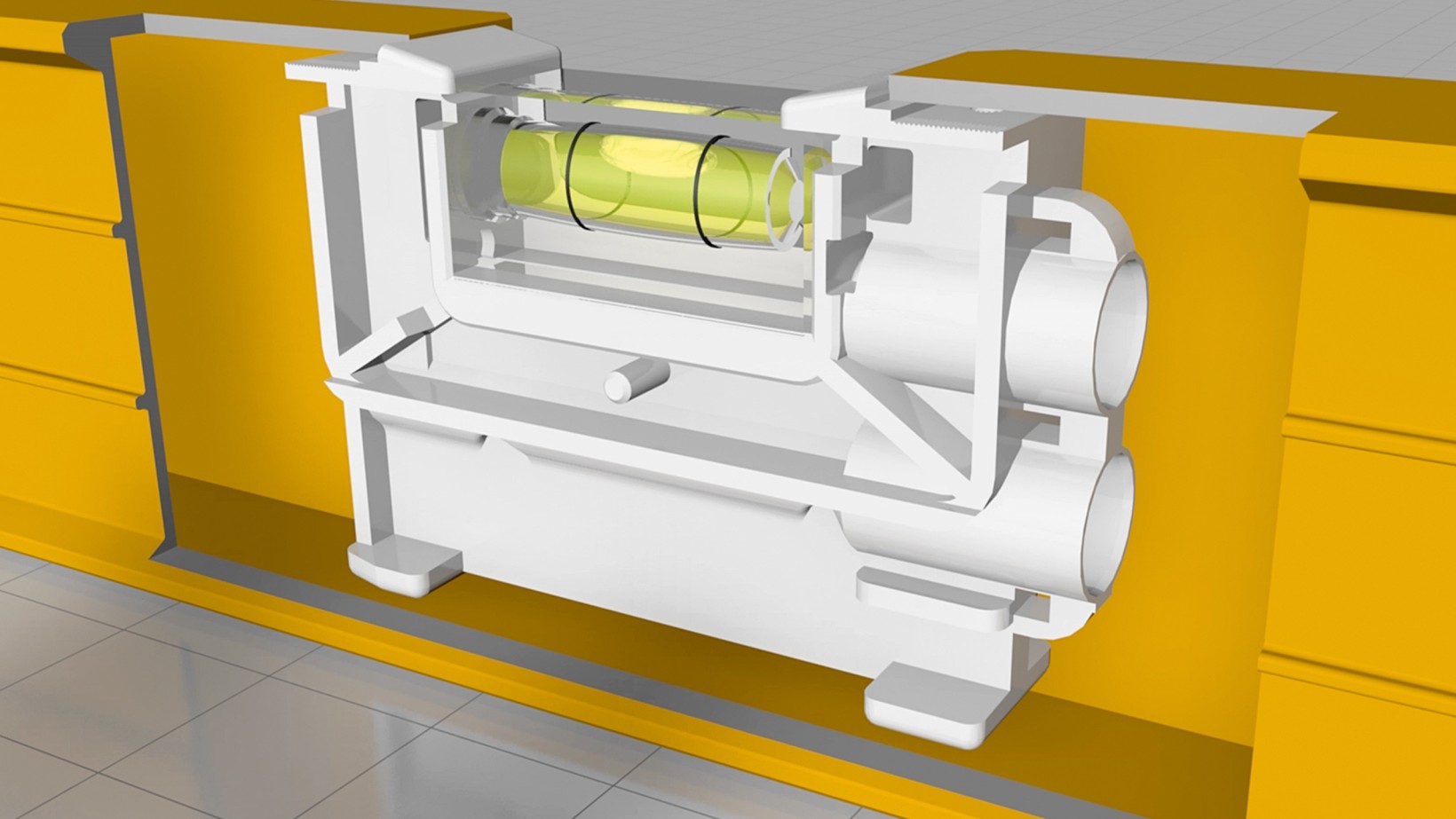

Vial accuracy guaranteed for life.
Plumb vial always at eye level.
2 plumb vials, 1 level vial.
Opposite side is a measuring surface and straight edge.
Protective carrying cases, replacement endcaps are available as optional accessories.

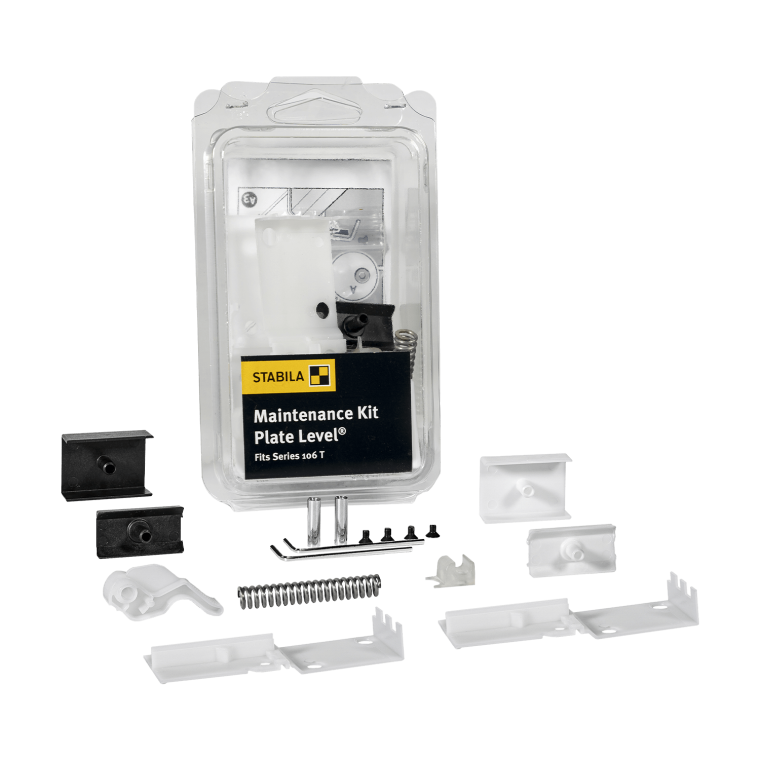

Order the maintenance kit cat. number 33000 to keep the extension system operating like new.

STABILA Rare Earth Magnetic Plate Levels adhere to metal with tremendous force. These magnetic levels allow you to work hands free with precision and speed.
