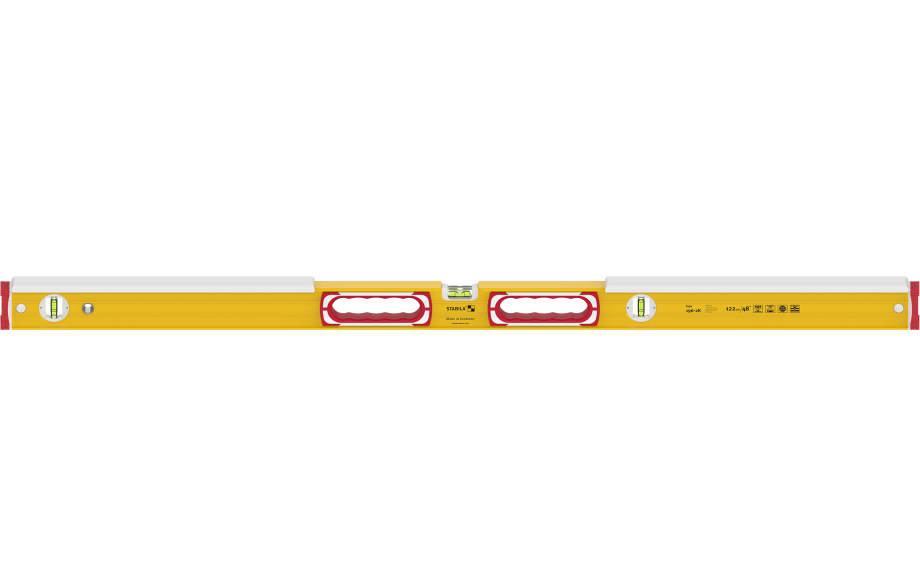

Type 196-2 K Mason Levels

16 in
24 in
36 in
48 in

Length 16 in

Cat. # 36416 UPC 089634364160

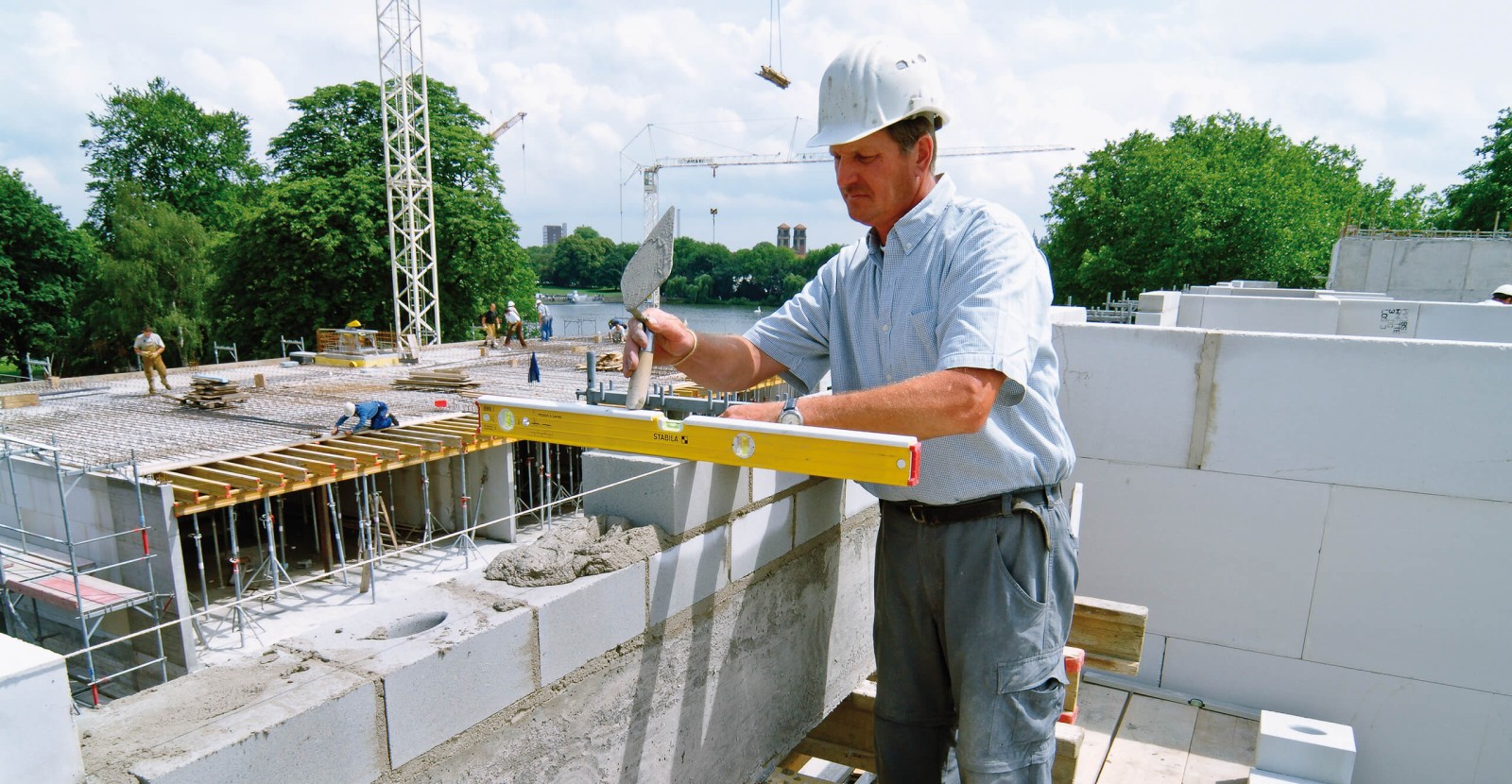

Designed to be hit with the butt of a trowel and by the hardened steel trowel blade.

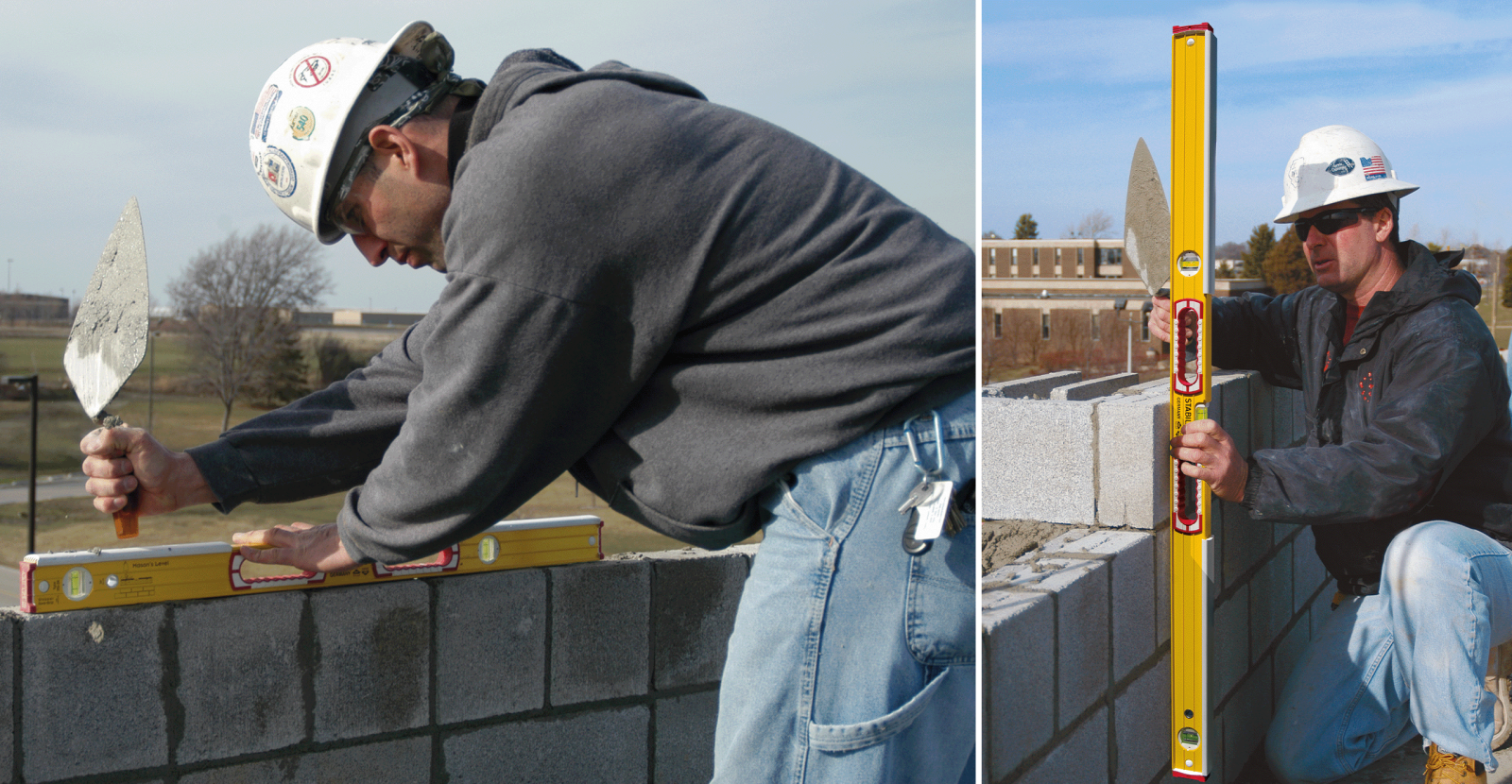

This series of levels has been engineered for contractors that work with brick and block and prefer to touch or hit the level with their trowel etc. Through the two strike zones, any out-of-line bricks can be adjusted with taps of a trowel. Added to this the hand grips on the 36in and 48in lengths make for easy handling. The tough reinforced aluminum frame precisely aligned with the STABILA locked vial system is the guarantee for accuracy on any harsh building site.

Highlights

Two impact resistant trowel strike zones.
Top mounted level vial for maximum vial readability.
One plumb vial is positioned in the direction of the center of the level so it is easy to read.
Frame will not warp or twist.
Level accuracy guaranteed for life; vials will never fog, leak or require adjustment.

Measurement accuracy in normal position ±

1/32in @ 72in

Measurement accuracy in reverse position ±

1/32in @ 72in

Number of measuring surfaces

1

Profile

Rectangular profile with ribs

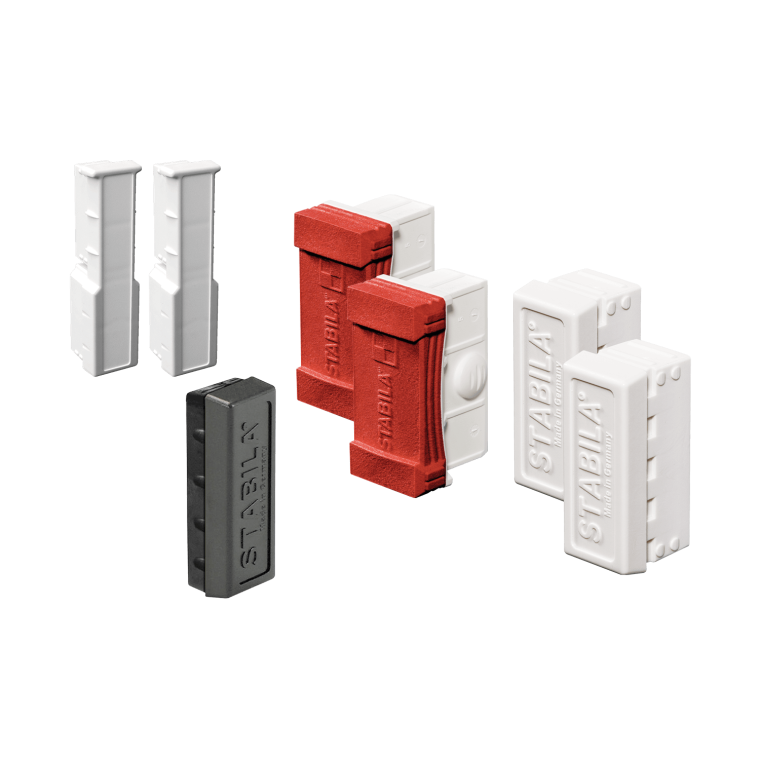

End caps

Removable / Wall Grips / Shock Absorbing

Tough aluminum frame with two strikes zones to protect from the repeated hits of a trowel.

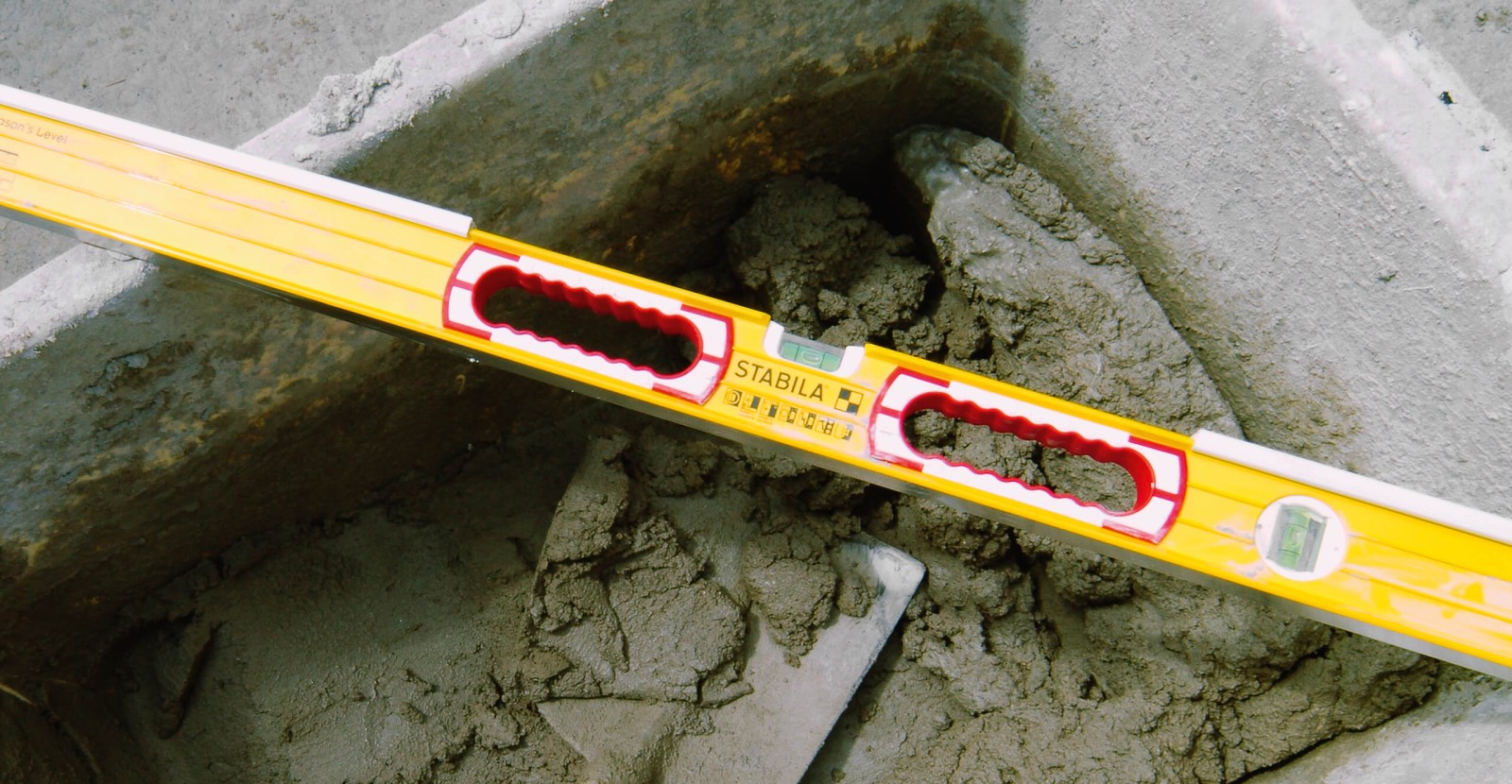

Large hand grips on 36in and 48in lengths.
Reinforcing ribs on the frame for added strength and grip.
Precision-milled measuring surface.
Always at eye level – the second plumb vial is offset towards the center, making it easy to read in all measuring positions.
Shock-absorbing, removable end caps – protects the frame against repeated drops and falls.
Easy to clean with water and brush.

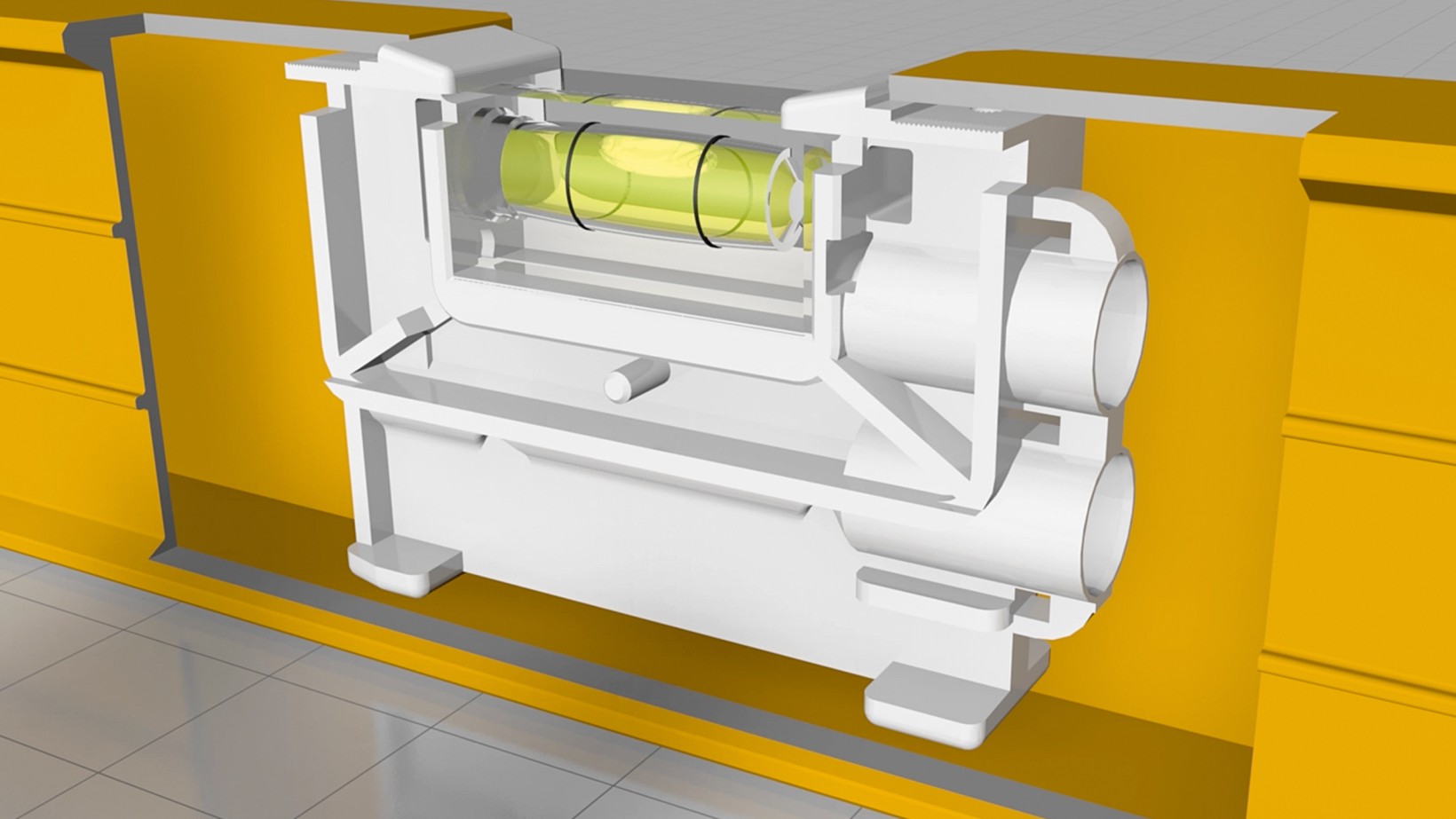

STABILA's vial installation technology delivers best in class reliability – measuring accuracy in normal and reverse position will not exceed 1/32in over 72 inches
The white housing material around the vials is contoured so it is easy to clean.

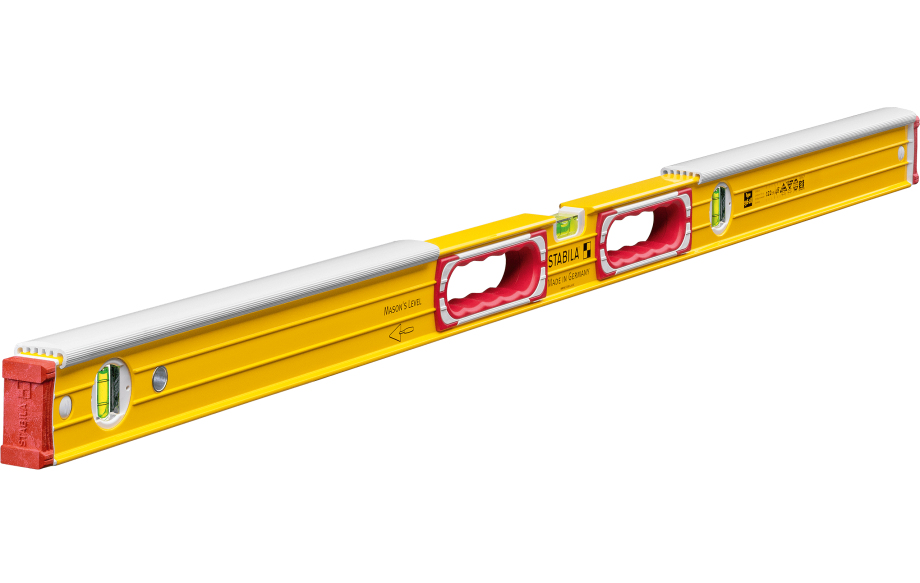

Equipment: 1 horizontal vial, 2 plumb vials, milled measuring surface, 2 hand grips on the 36in and 48in lengths. Metal sleeve hang hole so you hang the level up off the floor.

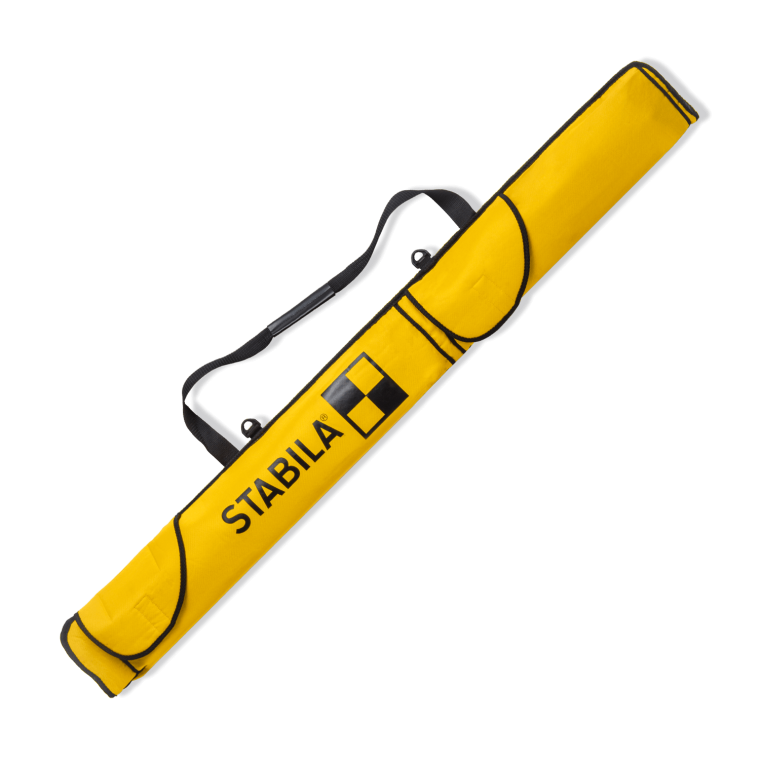

Protect your levels with a case. See cat. number 30015.

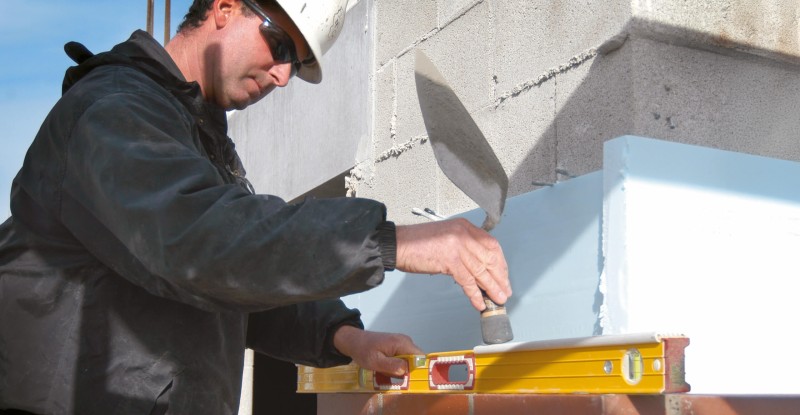

The STABILA Mason's level is designed for those who set brick, block and stone with a trowel. Striking shields allow the top of the level to be struck with the butt or blade of a trowel without causing damage to either the level or the trowel.
