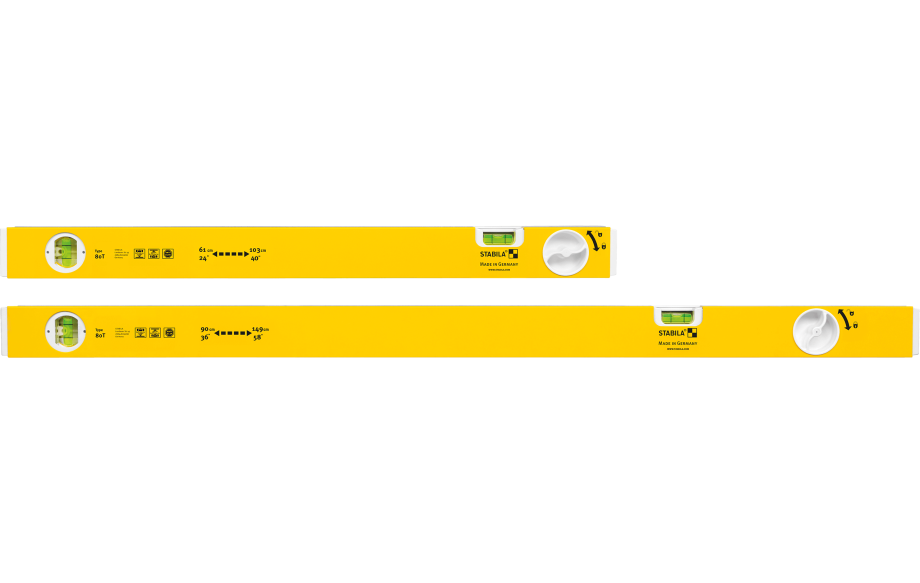

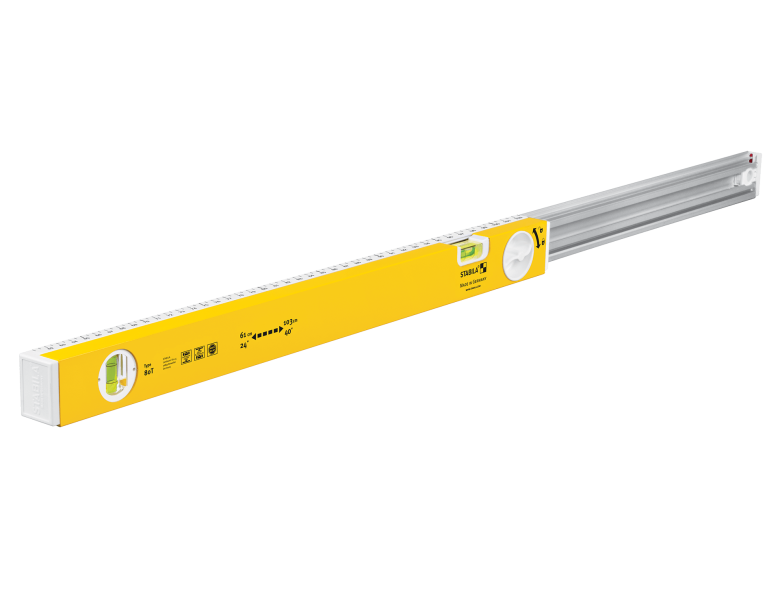

Type 80T Extendable levels

24 in
36 in

Length 24 in
Length (from–to) 24-40 in

Cat. # 29441 UPC 089634294412

Always have the right length.

STABILA has engineered a new extendable level, The 80T. It allows its size to be extended to fit the job. That's new and helpful.

Highlights

Compact, solid an strong in the open or closed position.
As you extend, the extension is solid and continuous for sharp and crisp scribing, scoring and tracing.
There's a measuring scale on the top of the level to help with layout and set ups.
A lock tightens the system keeping it firmly in position.
On the backside of the level, there are rubber feet that grip the wall and eliminate slipping.

Measurement accuracy in normal position ±

1/32in @ 72in

Measurement accuracy in reverse position ±

3/64in @ 72in

Measurement accuracy in extended normal position ±

1/16in @ 60in

Measurement accuracy in extended reverse position ±

1/16in @ 60in

Number of measuring surfaces

1

Profile

Rectangular profile with ribs

End caps

Standard

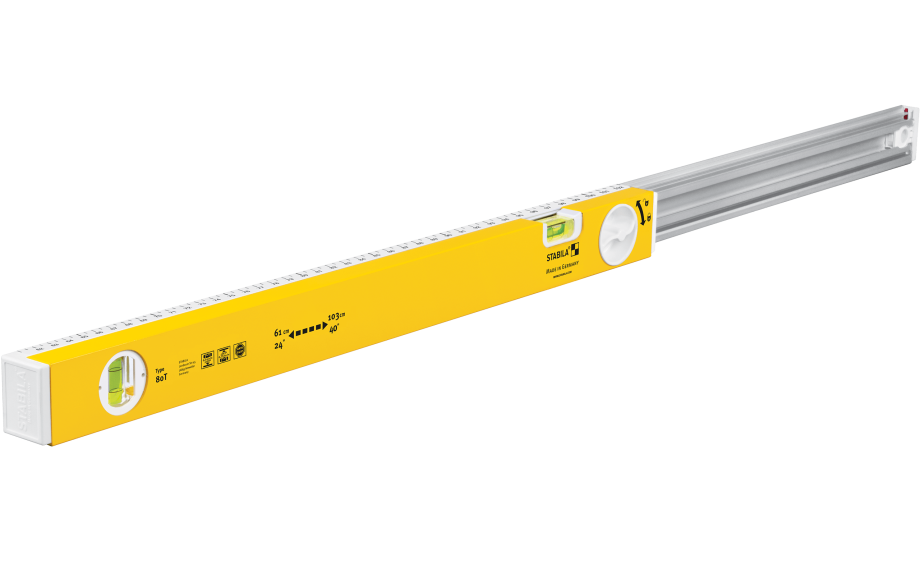

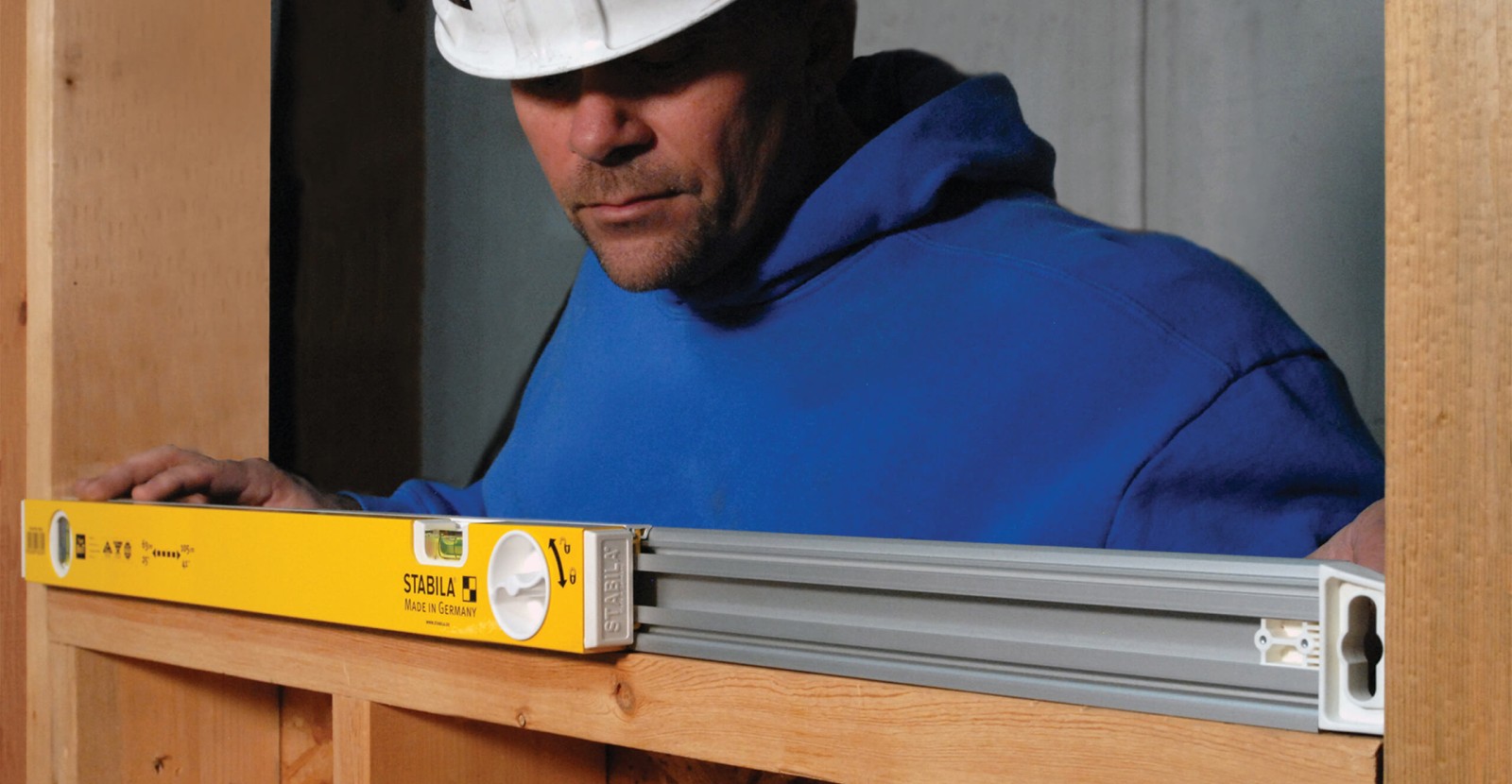

Extend the length of the level – Just pull out to the length needed and lock it firmly into position.

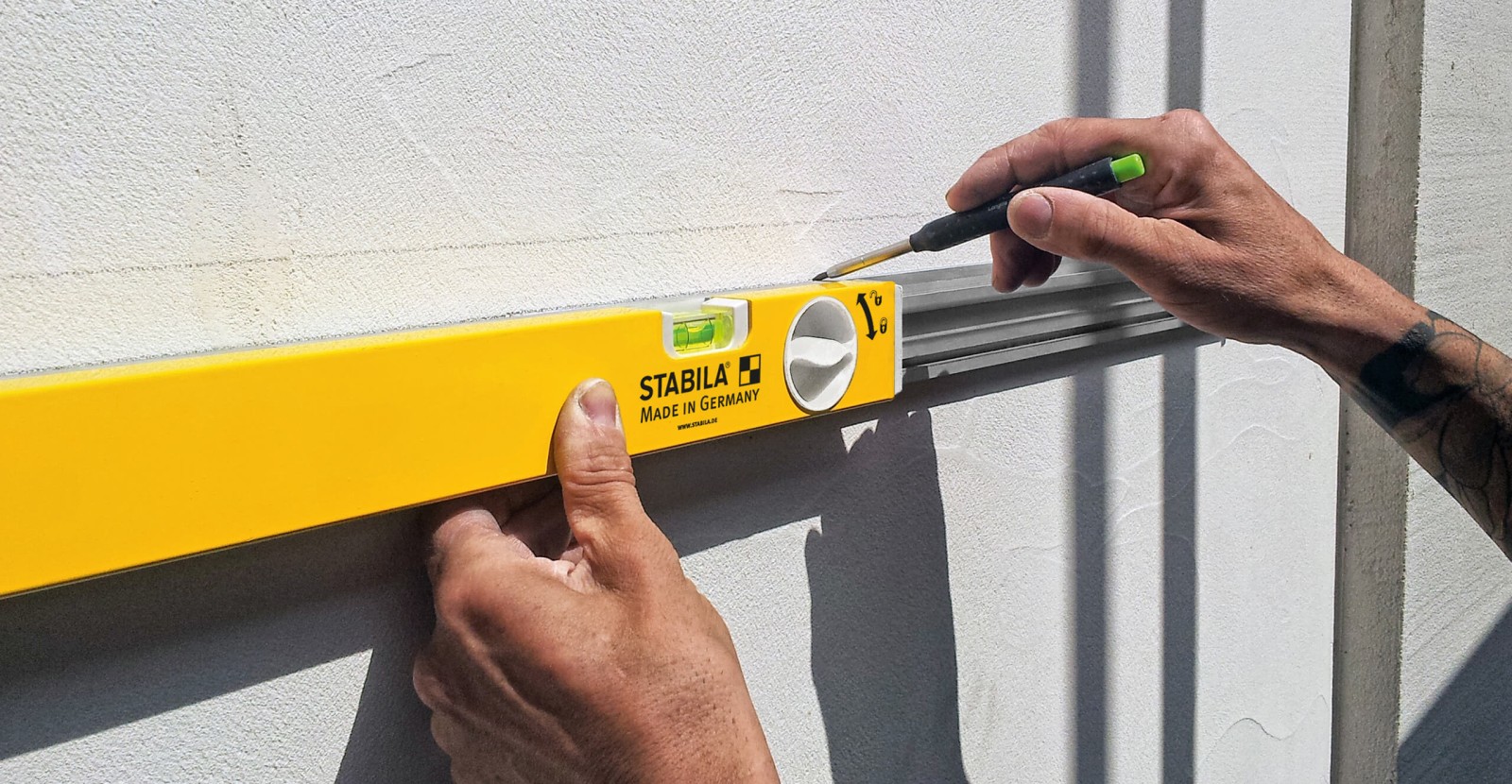

As you extend the level, the marking and cutting edge is continuous along entire length – measure and mark with no interruptions.
The measuring surface is precision machined.
There are printed scales on the level's topside for accurate layout and quick set ups.
A manual lock system tightens the entire system up when you are in position. Click and Go.
Red rubber feet on the backside of the level properly grip the wall you are working against. The level will not slip or leave scratches.
High-quality extension mechanism delivers precision – in normal position: closed, your accuracy tolerance will not exceed 1/32in over 72 inches. Extended your tolerance will not exceed 1/16in over 72 inches.
Equipment: 1 horizontal vial, 1 plumb vial, 1 measuring surface, extendable system, 1 continuous marking and cutting edge, 1 printed metric scale.

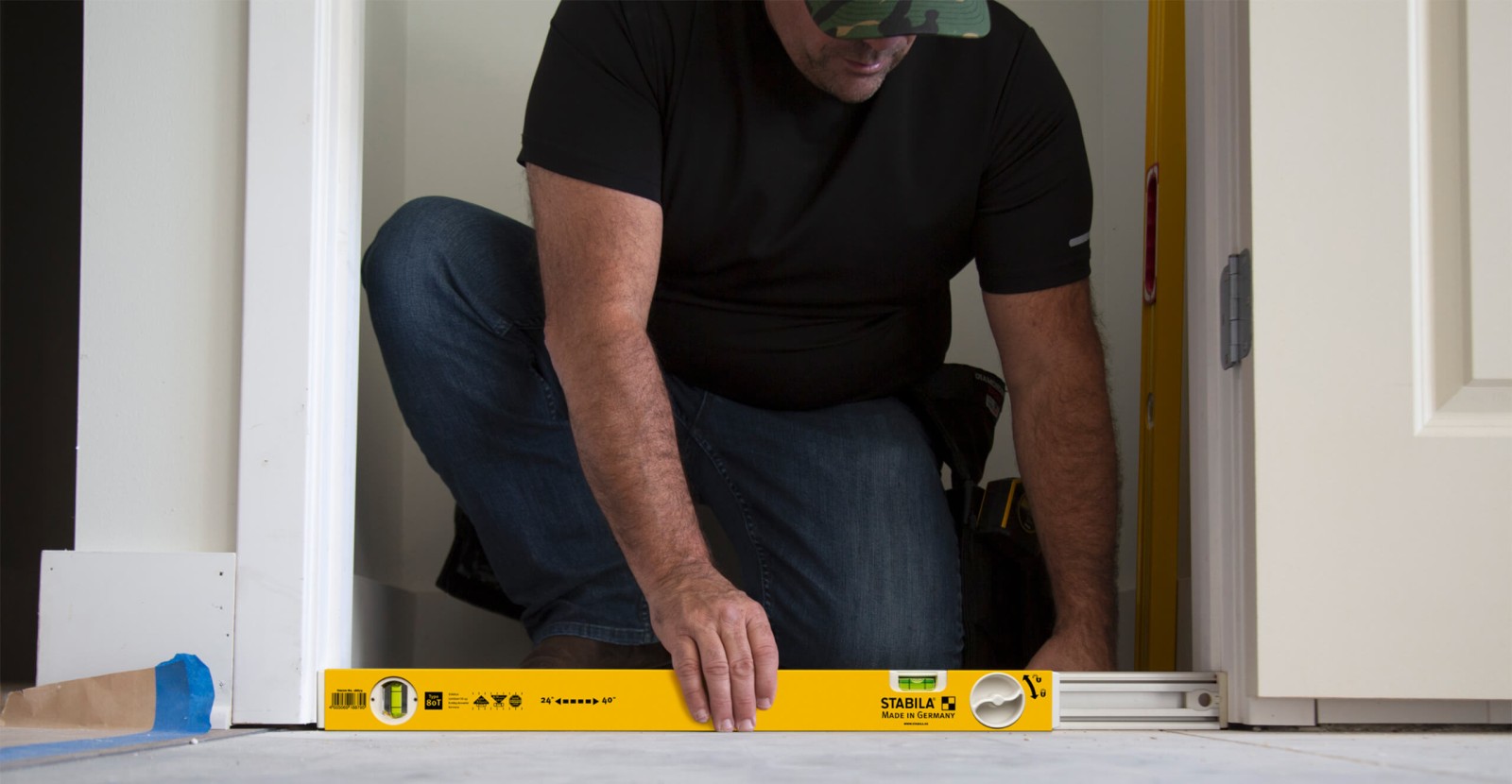

For carpentry – the extendable level covers most standard dimensions of kitchen cabinets. For fitting windows and doors – work out internal dimensions and align window and door frames. For plumbing installations – install shower trays and baths in a variety of sizes.
